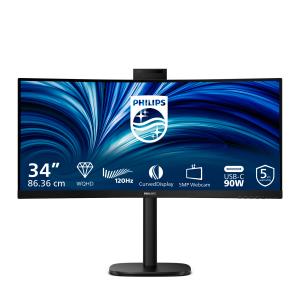

Desktop USB-c Curved Monitor - 34b2u3600ch - 34in - 3440x1440

Introduction

With the Smart KVM switch, it is ideal for switching between sources without compromising on picture quality. Features like USB-C and pop-up webcam with Windows Hello deliver the performance and convenience you expect.

Display

Display diagonal

86.4 cm (34")

Display resolution

3440 x 1440 pixels

HD type

Wide Quad HD

Native aspect ratio

21:9

Display technology

LCD

Panel type

VA

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

300 cd/m²

Response time

4 ms

Anti-glare screen

Yes

Screen shape

Curved

Screen curvature rating

1500R

Supported graphics resolutions

3440 x 1440

Contrast ratio (typical)

3500:1

Contrast ratio (dynamic)

50000000:1

Dynamic contrast ratio marketing name

SmartContrast

Maximum refresh rate

120 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Pixel pitch

0.23175 x 0.23175 mm

Pixel density

110 ppi

Viewable size, horizontal

79.7 cm

Viewable size, vertical

33.4 cm

Digital horizontal frequency

30 - 190 kHz

Digital vertical frequency

48 - 120 Hz

Display diagonal (metric)

86.36 cm

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

Colour depth

10 bit

sRGB coverage (typical)

120%

NTSC coverage (typical)

104%

Display sRGB

Yes

Vertical scan range

48 - 100 Hz

Colour gamut standard

sRGB, NTSC

Display panel size

34 inch / 86.36 cm

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

VESA Adaptive Sync support

Yes

Flicker-free technology

Yes

Windows operating systems supported

Windows 10, Windows 11

Mac operating systems supported

Yes

Multimedia

Number of speakers

2

RMS rated power

10 W

Built-in speaker(s)

Yes

Built-in camera

No

Megapixel (approx.)

5 MP

Built-in microphone

Yes

Design

Market positioning

Office

Product colour

Black

Feet colour

Black

Front bezel colour

Black

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-C

Number of USB Type-B upstream ports quantity

1

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

4

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

90 W

HDMI

Yes

HDMI ports quantity

1

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.4

Audio output

Yes

Built-in KVM switch

Yes

HDCP

Yes

HDCP version

1.4/2.2

Network

Ethernet LAN

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Adjustable height (max)

18 cm

Swivelling

Yes

Swivel angle range

-180 - 180°

Tilt adjustment

Yes

Tilt angle range

-5 - 30°

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

LED indicators

Yes

Picture-in-Picture

Yes

Power

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

20 kWh

Energy consumption (HDR) per 1000 hours

45 kWh

Power consumption (typical)

28.26 W

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Power consumption (PowerSave)

21.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Operating altitude

0 - 3658 m

Non-operating altitude

3658 - 12192 m

Weight & dimensions

Width (with stand)

807 mm

Depth (with stand)

287 mm

Height (with stand)

602 mm

Weight (with stand)

10.4 kg

Width (without stand)

807 mm

Depth (without stand)

107 mm

Height (without stand)

369 mm

Weight (without stand)

7.82 kg

Packaging data

Package width

930 mm

Package depth

188 mm

Package height

525 mm

Package weight

15.3 kg

Packaging content

Stand included

Yes

Cables included

DisplayPort, HDMI, Power, USB Type-A to USB Type-C, USB Type-C to USB Type-C

Manual

Yes

Bundled software

SmartControl

Sustainability

Sustainability certificates

ENERGY STAR

Doesn't contain

Mercury, PVC/BFR

Other features

HBR3 support

Yes

On/off switch

Yes

USB Power Delivery revision

3.0

Monitor sync input signal

Separate Sync, Sync on Green

Recyclable packaging material

100%

MultiView

2 x devices, PIP/PBP mode

Regulatory Approvals

CB CE Mark EPA TUV/GS TUV Ergo TCO Certified TCO Certified Edge EAC EAC ROHS MEPS CEL CCC CECP UKCA EMF FCC ICES-003 eyesafe® CERTIFIED 2.0 TÜV Rheinland Low Blue Light (Hardware Solution

SmartImage

Y

SoftBlue

Yes

EasyRead mode

Yes

Compliance certificates

RoHS

Ethernet LAN (RJ-45) ports

1

Compatible operating systems

Mac OS; Windows 11 / 10

Picture-by-Picture (PbP)

Yes

Exterior finish type

Textured

User controls

SmartImage; Input; Brightness; Menu; Power On/Off

Picture enhancement

SmartImage

Recycling data

Product post-consumer recycled plastic

85%
