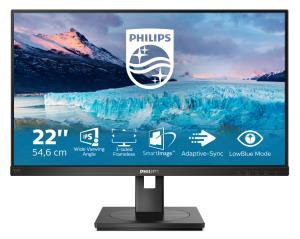

Desktop Monitor - 222s1ae - 22in - 1920x1080

Introduction

Philips S Line monitor gives essential features for daily productivity and work comfortably. Virtually frameless with crisp FHD for an extended and clear view. EasyRead and Eye comfort with TUV certified to reduce eye fatigue.

Display

Anti-glare screen

Yes

Display diagonal (metric)

54.6 cm

Display sRGB

Yes

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

LED backlight

Yes

Display panel size

21.5 inch/54.6 cm

Touchscreen

No

Display diagonal

54.6 cm (21.5")

Display brightness (typical)

250 cd/m²

Display resolution

1920 x 1080 pixels

Native aspect ratio

16:9

Response time

4 ms

HD type

Full HD

Display technology

LCD

Backlight type

W-LED

Display surface

Matt

Screen shape

Flat

Supported graphics resolutions

1280 x 720 (HD 720),1360 x 768 (WXGA),1920 x 1080 (HD 1080)

Supported video modes

720p,768p,1080p

Aspect ratio

16:9

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

50000000:1

Dynamic contrast ratio marketing name

SmartContrast

Maximum refresh rate

75 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.78 million colours

Panel type

IPS

Pixel pitch

0.24795 x 0.24795 mm

Pixel density

102 ppi

Horizontal scan range

30 - 85 kHz

Vertical scan range

48 - 75 Hz

Viewable size, horizontal

47.6 cm

Viewable size, vertical

26.8 cm

Digital horizontal frequency

30 - 85 kHz

Digital vertical frequency

48 - 75 Hz

RGB colour space

sRGB

Colour gamut

78%

sRGB coverage (typical)

102%

NTSC coverage (typical)

78%

Ports & interfaces

PC Audio in

Yes

HDCP version

1.4

Built-in USB hub

N

VGA (D-Sub) ports quantity

1

DVI port

Y

DVI-D ports quantity

1

HDMI

Y

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

DisplayPort version

1.2

Audio input

Y

Audio output

Y

Headphone out

Y

Headphone outputs

1

Headphone connectivity

3.5 mm

HDCP

Y

DC-in jack

Y

Power

Power supply type

Internal

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

16 kWh

Power consumption (typical)

11.8 W

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Power consumption (PowerSave)

9.7 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Sustainability

Doesn't contain

PVC/BFR, Mercury

European Product Registry for Energy Labelling (EPREL) code

413328

Sustainability certificates

RoHS, ENERGY STAR

Other features

Exterior finish type

Textured

Picture enhancement

SmartImage

Regulatory Approvals

CB; EPA; TUV/GS; TUV Ergo; SEMKO; CU-EAC; EAEU RoHS; UKRAINIAN; CE Mark; FCC Class B; ICES-003; TUV Eye Comfort certified

LowBlue mode

Yes

Compatible operating systems

Mac OS X; Windows 10 / 8.1 / 8 / 7

Monitor sync input signal

Separate Sync; Sync on Green

User controls

SmartImage; Input; Brightness; Menu; Power On/Off

Signal input

VGA (Analogue); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4

Recyclable packaging material

100%

EasyRead mode

Y

Mean time between failures (MTBF)

70000 h

Technical details

Compliance certificates

RoHS

Weight & dimensions

Depth (with stand)

205 mm

Height (with stand)

443 mm

Width (with stand)

489 mm

Weight (with stand)

4.3 kg

Width (without stand)

48.9 cm

Depth (without stand)

5 cm

Height (without stand)

29.5 cm

Weight (without stand)

2.5 kg

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

VESA Adaptive Sync support

Y

Component video sync

Separate sync,Sync-on-green (SOG)

Flicker-free technology

Y

Low Blue Light technology

Y

Multimedia

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

2 W

Built-in camera

N

Design

Market positioning

Business

Product colour

Black

Frameless design

Y

Front bezel colour

Black

Detachable stand

Y

Feet colour

Black

Heavy metals free

Hg (mercury)

Certification

CB, EPA, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, UKRAINIAN, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified

Logistics data

Harmonized System (HS) code

85285210

Ergonomics

Panel mounting interface

100 x 100 mm

Cable lock slot

Y

Cable lock slot type

Kensington

VESA mounting

Y

Height adjustment

Y

Height adjustment

13 cm

Pivot

Y

Pivot angle

90 - 90°

Swivelling

Y

Swivel angle range

0 - 180°

Tiltable

Y

Tilt angle range

-5 - 25°

On Screen Display (OSD)

Y

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Number of OSD languages

21

Plug and Play

Y

LED indicators

Operation, Stand-by

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Operating altitude

0 - 3658 m

Non-operating altitude

0 - 12192 m

Packaging data

Stand included

Y

Cables included

AC, DisplayPort, HDMI

Manual

Y

Package width

565 mm

Package depth

380 mm

Package height

184 mm

Package weight

7.11 kg

Package type

Box

Bundled software

SmartControl

Recycling data

Post-consumer recycled plastic

85%
