Presentation Scanners - Nfv260 2d Cmos Mpix Medical Scanner Dpm And Hd Scanner

Introduction

Designed for healthcare applications, the NVF260 is perfect for tracking surgical instruments. The NVF260 provides excellent performance in reading DPM barcodes with a new generation of industrial decoding algorithms. Its' blue diffuse illumination helps to avoid reflection from metal surfaces.

A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.

DPM Decoding.
With a new generation of industrial decoding, the NVF260 is excellent at reading DPM barcodes even on curved surfaces.

Advanced Illumination.
The NVF260's blue illumination ring helps to reduce bottlenecks in the scanning process by avoiding the reflection from materials with metal surfaces.

Impressive Image Sensor.
With a 1280x800 megapixel imager, the NVF260 can decode up to 3-millimetre barcodes.

Industrial Design.
Built with an IP64 housing, the NVF260 easily resists water and dust. The medical-grade housing is also able to be sterilized without alcohol damage.

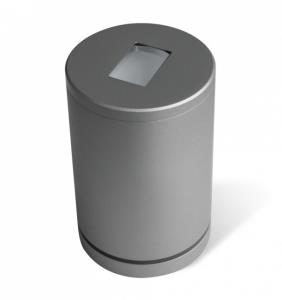

NFV260 2D CMOS Mega Pixel Medical scanner, DPM and HD scanner with direct USB cable

Scanning

Type

Built-in bar code reader

Scanner type

1D/2D

Sensor type

CMOS

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E

2D (matrix & stacked) barcodes supported

Data Matrix, QR Code

Optical sensor resolution (W x H)

1280 x 800 pixels

Tilt reading angle

-40 - 40°

Pitch reading angle

-40 - 40°

Yaw reading angle

0 - 360°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

USB

Performance

International Protection (IP) code

IP64

Protection features

Drop proof, Electrostatic Discharge (ESD) protection

Buzzer

Yes

Product colour

Grey

Certification

FCC Part15 Class B, CE EMC Class B

Power

Power source type

USB

Input voltage

5 V

Power consumption

230 mA

Weight & dimensions

Width

65 mm

Depth

65 mm

Height

100 mm

Weight

347 g

Packaging data

Cables included

USB

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

20 - 70 °C

Operating relative humidity (H-H)

5 - 95%
