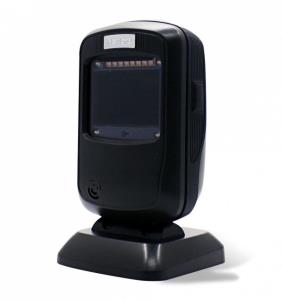

Presentation Scanners - Fr4080 Koi II 2d Mpix Cmos Omni Scanner W/ 2 M Rrs232 (nls-fr4080-28)

Introduction

As the first megapixel scanner on the market, the Koi reads 1D and 2D barcodes, including Aztec, with speed and ease. Equipped with a switch to toggle between paper and screen modes you are assured to have the best optimized reading every time.

The first megapixel presentation scanner on the market.
With user friendliness being at the forefront of POS systems, the FR40 Koi features soft illumination with a 10-degree tilt that insures comfort for both employees and customers. Combined with its superior performance and level of comfort, theFR40 Koi is the perfect addition to any POS system.

First megapixel presentation scanner.
At the top of the line, the FR40 Koi reads 1D and 2D barcodes, including Aztec, with speed and accuracy. It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.

Unmatched flexibility.
With a switch to toggle between paper and screen mode, the FR40 Koi is ready for any barcode that it is presented with. This added flexibility, leaves this hardware unaffected.

Comfortable Illumination.
With a 10° angle and soft illumination, the FR40 Koi guarantees comfort to both customers and employees. When facing outwards, the illumination will not draw unnecessary attention.

IP52 rated sealing.
With an IP52 rated seal, the FR40 Koi is protected against dust, water and other contaminants.

1.2 drop resistance.
The FR40 Koi withstands multiple 1.2m drops to concrete (six sides, one drop per side).

IR trigger.
The IR sensor in the FR40 Koi enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.

2D Mega Pixel CMOS Omnidirectional presentation desktop scanner with 2 meter RRS232 cable and multi plug adapter.

Scanning

Type

Fixed bar code reader

Scanner type

1D/2D

Sensor type

CMOS

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E

2D (matrix & stacked) barcodes supported

Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code

Optical sensor resolution (W x H)

1280 x 800 pixels

Tilt reading angle

-50 - 50°

Pitch reading angle

-45 - 45°

Yaw reading angle

0 - 360°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

RS-232

Cable length

2 m

Performance

International Protection (IP) code

IP52

Protection features

Drop proof, Electrostatic Discharge (ESD) protection

LED indicators

Yes

Buzzer

Yes

Print contrast

25%

Product colour

Black

Certification

FCC Part15 Class B, CE EMC Class B

Power

Power source type

AC

Input voltage

5 V

Power consumption

219 mA

Weight & dimensions

Width

83 mm

Depth

81 mm

Height

148 mm

Weight

293 g

Packaging data

External power adapter

Yes

Cables included

RS-232

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%
