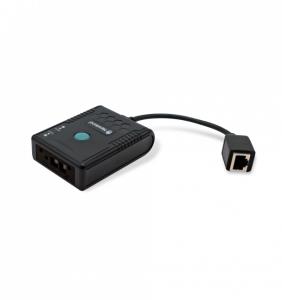

Stationary Scanners - Fm415 Bass - 2d Cmos Fixed Mounted Reader - USB Ext Cable 2m

Introduction

The FM415 Bass is designed for fast, straightforward 2D scanning applications. With its intelligent programming, it can be set to read optimally from both close and long distances. Additionally, its power efficiency reduces power consumption and prolongs service life. This stationary scanner is ideal for smoothly transitioning from 1D to 2D scanning without increasing the budget.

Snappy, even in less than perfect conditions
A combination of the IR sensor and the light sensor helps keep workers moving, even in low light conditions. Its strong, white light ensures barcodes are always well lit.

Handsfree or manual scanning
Companies looking for automatic scanning to relieve manual labor can set up the FM415 Bass for hands free scanning. Alternatively, a manual trigger button can be used if preferred.

Intelligent programming
The sensors of the FM415 Bass automatically adjust the brightness of supplementary lighting based on the light that reflects off the barcode. This also makes it an optimal solution for scanning from mobile phone screens. Depending on the application, the scanner can be set to optimally read from close and long distance.

Reliable outdoor use
With an IP rating of 54, this fixed mount scanner can be placed in a housing and used outdoors without worrying about dust or moisture.

Scanning

Type

Barcode module bar code reader

Scanner type

1D/2D

Sensor type

CMOS

Linear (1D) barcodes supported

AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 25, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 25, UPC-A, UPC-E

2D (matrix & stacked) barcodes supported

Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417

Optical sensor resolution (W x H)

640 x 480 pixels

Horizontal field of view

42°

Vertical field of view

31.5°

Pitch reading angle

-60 - 60°

Yaw reading angle

-60 - 60°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

RS-232, USB

USB 2.0 ports quantity

1

Performance

International Protection (IP) code

IP54

Protection features

Drop resistant

Buzzer

Yes

Print contrast

25%

Product colour

Black

Power

Power source type

USB

Power consumption

228 mA

Weight & dimensions

Width

49 mm

Depth

69 mm

Height

20 mm

Weight

64.6 g

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Drop resistance

1.5 m

Technical details

Compliance certificates

CE, Federal Communications Commission (FCC)
