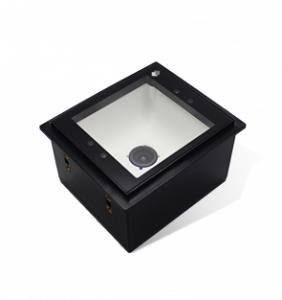

Stationary Scanners - Fm30 Hind 2d Cmos Mpix Fix Mount Reader For Kiosk Integration (nls-fm3080v2-20)

Introduction

Snappy on-screen barcode capture.
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

Scanning

Type

Fixed bar code reader

Scanner type

1D/2D

Sensor type

CMOS

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E

2D (matrix & stacked) barcodes supported

Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code

Optical sensor resolution (W x H)

800 x 800 pixels

Pitch reading angle

-40 - 40°

Yaw reading angle

0 - 360°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

USB

Performance

International Protection (IP) code

IP65

Protection features

Electrostatic Discharge (ESD) protection

LED indicators

Yes

Buzzer

Yes

Product colour

Black

Certification

FCC Part15 Class B, CE EMC Class B

Power

Power source type

USB

Input voltage

5 V

Power consumption

250 mA

Weight & dimensions

Width

78.7 mm

Depth

67.7 mm

Height

47.5 mm

Weight

132 g

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%
