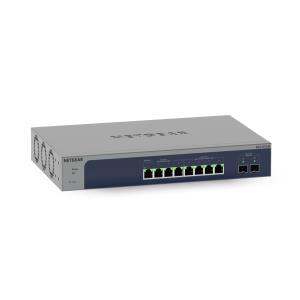

MS510TXM Smart Switch 8-Port Multi-Gigabit/10G Ethernet with 2 SFP+ Ports

Introduction

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-Gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. It is the ideal companion to the NETGEAR WAX610PA WiFi 6 Access Point that features a 2.5G Ethernet port and a power adapter.

MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.

Management features

Switch type

Managed

Switch layer

L2/L3/L4

Quality of Service (QoS) support

Y

Cloud-managed

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Installed SFP+ modules quantity

2

Network

Networking standards

IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x

10G support

Y

Copper ethernet cabling technology

1000BASE-T

Port mirroring

Y

Full duplex

Y

Flow control support

Y

Link aggregation

Y

Broadcast storm control

Y

Spanning tree protocol

Y

Ethernet LAN data rates

100,1000,2500,5000,10000 Mbit/s

VLAN support

Y

Number of VLANs

256

Data transmission

Switching capacity

140 Gbit/s

MAC address table

32000 entries

Jumbo frames support

Y

Jumbo frames

10000

Security

DHCP features

DHCP client,DHCP server

Access Control List (ACL)

Y

Access Control List (ACL) ingress

100

IGMP snooping

Y

Security algorithms

HTTPS,SSL/TLS

Loop protection

Y

Multicast features

Multicast support

Y

Protocols

Management protocols

SNMP v1/v2c,SNMP v3

Design

Rack mounting

Y

Product colour

Grey, Blue

LED indicators

Activity, Power, Speed

Performance

Built-in processor

Y

Processor frequency

1000 MHz

Internal memory

256 MB

Flash memory

64 MB

Power

Power supply included

Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 3000 m

Weight & dimensions

Width

330 mm

Depth

206 mm

Height

43 mm
