Newstar Wall Mounted Gas Spring Tv Mount

Introduction

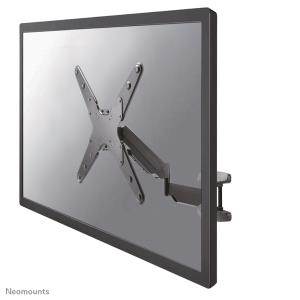

The Neomounts by Newstar WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Mounting

Maximum weight capacity (per display)

30 kg

Maximum weight capacity

30 kg

Minimum screen size

81.3 cm (32")

Number of displays supported

1

Maximum weight capacity (per display)

30 kg

Maximum screen size

139.7 cm (55")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

400 x 400 mm

Panel mounting interface

100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,75 x 75

Mounting type

Wall

Minimum screen size

81.3 cm (32")

Maximum weight capacity

30 kg

Maximum screen size

139.7 cm (55")

Mounting

Screws

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

400 x 400 mm

Panel mounting interface

75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300

Number of displays supported

1

Mounting type

Wall

Distance to the wall (min)

6.1 cm

Distance to the wall (max)

56.5 cm

Ergonomics

Pivot angle

-3 - 3°

Height adjustment

Yes

Height adjustment type

Gas spring

Height adjustment range

45 - 327 mm

Tilt adjustment

Yes

Tilt angle range

-15 - 5°

Swivelling

Yes

Swivel angle

180°

Rotating

Yes

Angle of rotation

6°

Pivot angle

-3 - 3°

Cable management

Yes

Distance to the wall (max)

56.5 cm

Distance to the wall (min)

6.1 cm

Height adjustment

Y

Height adjustment type

Gas spring

Height adjustment range

0 - 282 mm

Tiltable

Y

Tilt angle range

-15 - 5°

Swivel angle

180°

Angle of rotation

3°

Cable management

Y

Swivel angle range

0 - 180°

Swivelling

Yes

Rotating

Yes

Design

Product colour

Black

Housing material

Steel

Product colour

Black

Housing material

Steel

Weight & dimensions

Width

450 mm

Depth

565 mm

Height

450 mm

Package width

365 mm

Package depth

505 mm

Package height

75 mm

Package net weight

5.5 kg

Width

450 mm

Depth

565 mm

Depth (max)

56.5 cm

Height

450 mm

Weight

4.53 kg

Weight

4.53 kg

Packaging data

Quantity per pack

1 pc(s)

Package width

365 mm

Package depth

505 mm

Package height

75 mm

Package weight

5.5 kg

Package weight

5.5 kg

Logistics data

Master (outer) case width

380 mm

Master (outer) case length

520 mm

Master (outer) case height

345 mm

Products per master (outer) case

3 pc(s)

Master (outer) case net weight

13.8 kg

Harmonized System (HS) code

85299097

Products per pallet (EU)

72 pc(s)

Master (outer) case width

380 mm

Master (outer) case length

520 mm

Master (outer) case height

345 mm

Master (outer) case gross weight

17.5 kg

Master (outer) case net weight

13.8 kg

Products per master (outer) case

3 pc(s)

Harmonized System (HS) code

7326909890

Products per pallet (EU)

72 pc(s)

Master (outer) case gross weight

17.5 kg

Other features

Country of origin

China

Mounting

Screws

Minimum weight

5 kg

Minimum weight

5 kg

Technical details

Country of origin

China

Package net weight

5.5 kg

Quantity per pack

1 pc(s)
