Flatscreen Desk Mount Stand / Foot (fpma-d700dd3)

Introduction

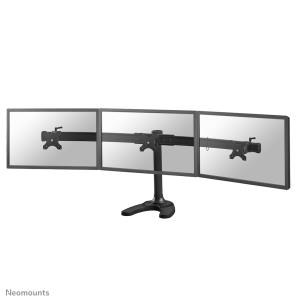

The Neomounts by Newstar desk mount, model FPMA-D700DD3 is a tilt- and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk stand or grommet mount.

Neomounts by Newstar's versatile rotate (360°) and swivel (45°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 42 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts by Newstar FPMA-D700DD3 has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Mounting

Maximum weight capacity (per display)

8 kg

Distance to the wall (min)

0 mm

Maximum weight capacity

8 kg

Mounting

Freestanding/Grommet

Panel mounting interface

75 x 75 mm

Minimum screen size

25.4 cm (10")

Maximum weight capacity

8 kg

Maximum screen size

68.6 cm (27")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Number of displays supported

3

Mounting type

Desk

Distance to the wall (max)

7 cm

Packaging data

Package weight

11.6 kg

Ergonomics

Swivel angle range

0 - 45°

Depth adjustment range

0 - 70 mm

Swivelling

Yes

Rotating

Yes

Height adjustment

Y

Height adjustment type

Manual

Height adjustment range

340 - 450 mm

Swivel angle

45°

Angle of rotation

360°

Design

Housing material

Steel

Product colour

Black

Weight & dimensions

Weight

11.2 kg

Width

1300 mm

Depth

70 mm

Height

450 mm

Package width

748 mm

Package depth

345 mm

Package height

150 mm

Logistics data

Master (outer) case gross weight

12.9 kg

Master (outer) case net weight

11.6 kg

Master (outer) case width

748 mm

Master (outer) case length

345 mm

Master (outer) case height

150 mm

Products per master (outer) case

1 pc(s)

Harmonized System (HS) code

HS83025000

Products per pallet (EU)

33 pc(s)

Other features

Country of origin

Taiwan

Width adjustment range

320 - 1300 mm
