Midspan 1-Port IEEE802.3BT Legacy Mids 90W 10/100/1000 BaseT AC UK

Introduction

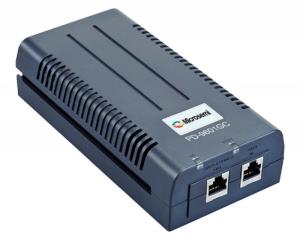

The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power. The midspan is IEEE 802.3bt type 4 and is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points, powering 10/100/1000Base-T devices. With the midspan’s plug and-play installation, they are easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Yes

Networking standards

IEEE 802.3bt

Features

LED indicators

Yes

Mean time between failures (MTBF)

100000 h

Certification

CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE) voltage

55 V

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Input current

1.35 A

Power over Ethernet (PoE) power per port

90 W

Operational conditions

Operating temperature (T-T)

-10 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-304.8 - 2000 m

Weight & dimensions

Width

166.4 mm

Depth

88 mm

Height

43.9 mm

Weight

660 g

Packaging content

Number of products included

1 pc(s)
