Extender USB 3.2 Gen 1 CAT6a Hdbaset 100m

Introduction

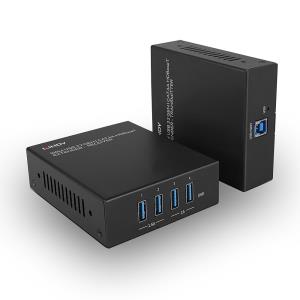

This Lindy USB 3.2 Gen 1 Cat.6A Extender can be used to extend the distance between USB peripheral devices and the host computer by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer.
A standard Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft). It's also possible to reach up to 40m using a Cat.6 cable.

The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The 4 Type A ports on the Receiver can provide 5V power as well to the connected devices; 2 ports support up to 1.5A each and 2 ports support up to 1A each.

Status LEDs help the user to check power, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras.

With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

*: To cover long distances close to the 100m limit, we recommend using HDBaseT-certified Cat.6A (or above) cables.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

100 m

Cable types supported

Cat6a

Product colour

Black

Material

Metal

Plug and Play

Yes

LED indicators

Yes

Transmitter

Transmitter local keyboard/mouse port type

USB

RJ-45 ports quantity (transmitter)

1

Transmitter USB Type-B ports quantity

1

Receiver

RJ-45 ports quantity (receiver)

1

Receiver USB Type-A ports quantity

4

Ports & interfaces

USB port type

USB Type-A/USB Type-B

RS-232 ports

4

Power

AC input voltage

24 V

Input current

2 A

DC-in jack

Yes

Weight & dimensions

Transmitter width

10 cm

Transmitter depth

8.5 cm

Transmitter height

3 cm

Transmitter weight

500 g

Receiver width

10 cm

Receiver depth

8.5 cm

Receiver height

3 cm

Receiver weight

500 g

Packaging data

Package width

235 mm

Package depth

150 mm

Package height

80 mm

Package weight

900 g

Packaging content

AC adapter included

Yes

Cables included

USB Type-A

Manual

Yes

Mounting bracket(s) included

Yes

Included power plug types

AU, EU, UK, US

Screws included

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Other features

Warranty period

2 year(s)

Bandwidth

5 Gbit/s

Compliance certificates

CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
