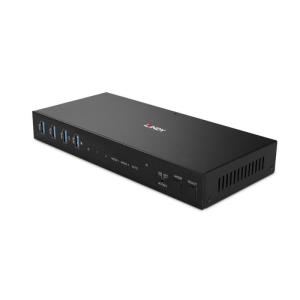

KVM Switch 2 Port Dual Head Hdmi 4k60,USB3.0

Introduction

This KVM Switch can share 2 displays and USB devices between 2 computers in different modes: Single PC mode with both video showing the dual head input from one source; Dual PC mode with the first display fixed on the first PC1 input and the second display fixed on the first PC2 input.

Switching methods are:

- Front panel buttons
- Hotkeys (with on/off button)
- IR remote control
- RS-232 commands

Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.

USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.

With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices.

Ports & interfaces

Number of computers controlled

4

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

HDMI ports quantity

4

HDMI version

2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

Console ports

3.5mm headphone, HDMI, USB A

Console USB ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

4

USB connector type

USB Type-A, USB Type-B

Audio connections

Yes

Headphone outputs

2

DC-in jack

Yes

Performance

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Video bandwidth

60 Hz

HDCP

Yes

HDCP version

2.3

Design

Rack mounting

No

Product colour

Black

Housing material

Metal

LED indicators

Status

Push button

Yes

Hot keys

Yes

Certification

CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Display

Built-in display

No

Power

Power source

DC

Input voltage

12 V

Output current

1 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 90%

Weight & dimensions

Width

220 mm

Depth

100 mm

Height

30 mm

Weight

609 g

Packaging data

Package width

300 mm

Package depth

185 mm

Package height

115 mm

Package weight

1.61 kg

Package type

Box

Packaging content

Cables included

DC, HDMI, USB Type-A to Micro USB-B

Quick installation guide

Yes

Manual

Yes

Rack mount kit

Yes

Remote control included

Yes

Other features

Warranty period

2 year(s)
