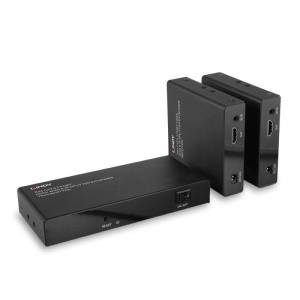

Splitter Extender 2 Port CAT6 Hdmi 4k60 70m

Introduction

The Lindy 70m Cat.6 2 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI® signals to multiple displays using standard Cat.6 network cables.

Scalable Content Distribution
This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution.

Immersive 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.

Seamless IR Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.

Simultaneous PoC Distribution
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.

Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Maximum transfer distance

70 m

Chipset

GSV2006 & GSV5100

EDID management

Yes

Infrared (IR) frequency range

20 - 60 kHz

Bandwidth

18 Gbit/s

Audio formats supported

LPCM

HDCP

Yes

Material

Metal

HDCP version

2.2

Product colour

Black

Certification

CE, UKCA, FCC, RoHS, REACH & California Propositon 65

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

RJ-45 output ports

2

HDMI in

1

Number of HDMI outputs

2

Remote (IR) input

1

Remote (IR) output

1

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Receiver dimensions (WxDxH)

100 x 88 x 23 mm

Receiver weight

199 g

Transmitter dimensions (WxDxH)

154 x 103 x 23 mm

Transmitter weight

263 g

Packaging data

Quantity per pack

3 pc(s)

Package width

292 mm

Package depth

238 mm

Package height

55 mm

Package weight

1.26 kg

Package type

Box

Packaging content

Cables included

IR

Manual

Yes

Mounting brackets included

Yes

Packaging content

70m Cat.6 2 Port HDMI® 4K60 Splitter Extender 2 x Receivers IR Emitter Cable, 1.2m 2 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 4 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual
