Media Converter Sc 1000 Base-fx, Multimode

Media Converter Sc 1000 Base-fx, Multimode

£50.36
£60.43
Part Number: 25119
Language: NS
Real time Stock Check

Product Details

Introduction

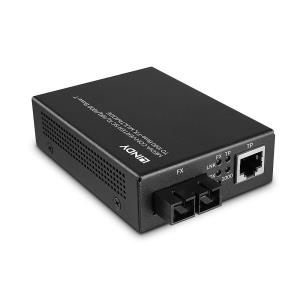

This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.

The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.

Network

Networking standards

IEEE 802.3

Ethernet LAN data rates

10,100,1000 Mbit/s

Duplex system

Full, Half

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

2

Fiber optic connector

SC

Performance

Maximum transfer distance

550 m

Wavelength

850 nm

Fiber mode structure

Multi-mode

Fiber cable diameters supported (core/cladding)

50/125,62.5/125 µm

Design

Internal

No

LED indicators

Yes

Product colour

Black

Certification

CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Power

Output voltage

5 V

Output current

1 A

Weight & dimensions

Width

95 mm

Depth

70 mm

Height

25 mm

Weight

540 g

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Packaging data

Package width

165 mm

Package depth

155 mm

Package height

45 mm

Package weight

650 g
