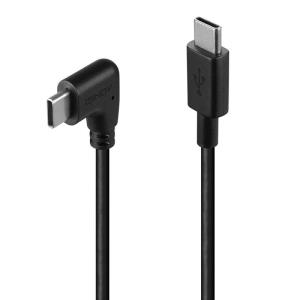

Cable - USB-c Male - USB-c Male - 1m - 90 Degree Right Angle Black

Introduction

LINDY USB 2.0 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 2.0 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m.

Features

USB version

USB 2.0

Connector 1

USB C

Connector 2

USB C

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Angled

AWG wire size

22/28

Connector material

Gold

Connector contacts plating

Nickel

Cable jacket material

Nylon/Polyvinyl Chloride (PVC)

Conductor material

Copper

Connector shielding

Yes

Connector shield material

Aluminium

Product colour

Black

Cable type

Round cable

USB Power Delivery up to

60 W

Nominal attenuation

0.5Mhz- 400Mhz < 5.8db

Weight & dimensions

Cable length

1 m

Cable diameter

3.8 mm

Bend radius (min)

5 cm

Connector 1 dimensions (WxDxH)

6.5 x 23.7 x 10.9 mm

Connector 2 dimensions (WxDxH)

7 x 24 x 6.8 mm

Packaging data

Package type

Polybag

Packaging content

Quantity per pack

1 pc(s)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

0 - 70 °C

Certificates

Compliance certificates

REACH, RoHS

Certification

RoHS, REACH, California Proposition 65

Logistics data

Warranty period

10 year(s)
