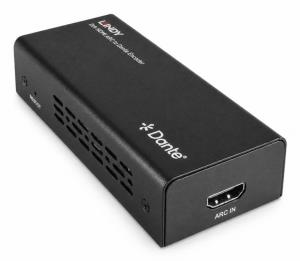

2ch Hdmi Arc To Dante Encoder

Introduction

Bring HDMI® ARC Audio into Dante® Networks
The Lindy 2ch HDMI® ARC to Dante® Encoder provides a simple and reliable way to convert HDMI® ARC audio into Dante® network audio, making it ideal for meeting rooms, hospitality displays, education spaces and professional AV installations.

Seamless HDMI® ARC Audio Integration for Dante® Systems
Designed for modern AV environments, this compact encoder converts 2 channel HDMI® ARC audio into low latency Dante® and AES67 network audio with support for 44.1 / 48kHz sample rates at 24-bit resolution. Flexible USB-C or PoE powering, plug and play operation and multiple control options make it easy to deploy within corporate, education, hospitality and professional AV systems.

Integrates HDMI® ARC sources into Dante® systems
Converts HDMI® ARC audio into Dante® and AES67 network audio, allowing displays and AV devices to become part of scalable professional audio infrastructures.

Supports professional audio quality
24-bit audio with 44.1 / 48kHz sample rates ensures clear, accurate and low latency audio transmission across AV environments.

Broad compatibility with Dante® and AES67
Native AES67 RTP support improves interoperability across compatible networked audio systems and ecosystem architectures.

Flexible control and configuration
Input sensitivity and volume can be managed through CEC, a web-based GUI or API commands, offering greater control flexibility for system integrators.

Simple installation and deployment
Power can be supplied via USB-C or 802.3af PoE, reducing cabling requirements and simplifying integration within racks, meeting rooms and AV installations.

Compact professional design
The durable metal housing and compact footprint make the encoder suitable for permanent installations, mobile production and professional AV environments.

Typical Applications
The 2ch HDMI® ARC to Dante® Encoder is ideal for integrating HDMI® ARC audio from displays and AV devices into Dante® audio systems within meeting rooms, hospitality environments, lecture theatres, retail spaces and professional AV installations. It is also suitable for broadcast, streaming and networked audio deployments requiring simple and reliable HDMI® ARC audio integration.

Inputs

USB connector type

USB Type-C

HDMI in

1

Outputs

RJ-45 ports quantity

1

Technical details

Maximum transfer distance

100 m

Maximum data transfer rate

100 Mbit/s

Product colour

Black

Housing material

Metal

Warranty period

3 year(s)

Compliance certificates

CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS

Power over Ethernet (PoE)

Yes

Power

Power consumption (max)

1 W

Weight & dimensions

Width

114 mm

Depth

48 mm

Height

26 mm

Weight

180 g

Operational conditions

Operating temperature (T-T)

-5 - 55 °C

Storage temperature (T-T)

-25 - 70 °C

Packaging data

Quantity

1

Manual

Yes

Package weight

260 g

Package type

Box
