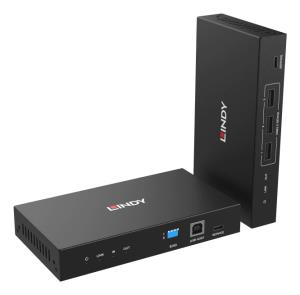

Fibre Optic Hdmi 4k60 KVM USB 2.0 Ir And Rs232 Black

Introduction

The Lindy Fibre Optic HDMI® 4K60 KVM USB 2.0, RS-232 & IR Extender is a high-performance, reliable solution for transmitting AV and data signals over extra-long distances via LC duplex fibre optic cabling.

Supported distance and cable types:
5km - LC Duplex OS2 Singlemode (9/125µm)
300m - LC Duplex OM4 Multimode (50/125µm)

Supporting uncompressed resolutions up to 4K Ultra HD, this extender delivers video with exceptional clarity. HDR (High Dynamic Range) provides enhanced brightness, superior contrast, and a wider colour gamut.
An HDMI® loop-out port on the transmitter enables local simultaneous viewing, ideal for monitoring or creating an additional viewing zone.

This extender includes all the essential connections for professional AV and KVM applications. The receiver features USB 2.0 device ports (supporting up to 5V 1A each), allowing seamless integration with KVM setups, presentation systems, and collaboration or meeting room environments.

With bi-directional IR ports on both the transmitter and receiver, users can control source equipment from the display side and displays from the source location. RS-232 connections ensure easy integration with existing control systems. The screw-type DC power connector provides a secure and reliable connection, ideal for professional installations where accidental disconnection must be avoided.
An analog audio de-embedding port on the receiver allows the separate management of audio signals, while the built-in EDID management function ensures maximum compatibility with displays and projectors.

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

5000 m

Maximum digital resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

Colour depth

8 bit

High Dynamic Range (HDR) supported

Yes

Product colour

Black

Material

Metal

LED indicators

Yes

Transmitter

Transmitter video port type

HDMI

Transmitter USB Type-B ports quantity

1

Receiver

Receiver local video port type

HDMI

Receiver USB Type-A ports quantity

3

Ports & interfaces

USB port type

USB Type-C

RS-232 ports

1

Remote (IR) input

2

Remote (IR) output

2

Power

DC-in jack

Yes

Weight & dimensions

Transmitter width

14.4 cm

Transmitter depth

7.8 cm

Transmitter height

2.3 cm

Transmitter weight

1.2 kg

Receiver width

14.4 cm

Receiver depth

7.8 cm

Receiver height

2.3 cm

Receiver weight

1.2 kg

Packaging data

Package weight

1.47 kg

Packaging content

AC adapter included

Yes

Cables included

USB Type-A to USB Type-B, IR

Manual

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Other features

HDCP

Yes

HDCP version

2.2

Extended display identification data (EDID)

Yes

Mean time between failures (MTBF)

30000 h

Warranty period

2 year(s)

Bandwidth

18 Gbit/s

Compliance certificates

CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS
