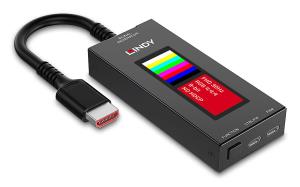

Hdmi 8k30 Signal Generator

Introduction

This generator supports a total bandwidth of up to 40Gbps, it can create a wide range of signal formats and includes multiple preset modes to meet the requirements of various test environments. In addition, a comprehensive set of built-in test patterns is provided to support multi-angle verification of display devices.

Powered over USB-C port, it provides a LCD screen for real-time monitoring and browse the options. It can also be managed over serial communication though another dedicated USB-C port.

Compact in size yet powerful in functionality, the generator combines extensive signal generation capabilities, intuitive operation, and stable performance, making it an ideal tool for HDMI® signal generation and display validation.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Features

Product type

Signal generator

Product colour

Black

Housing material

Metal

Number of test patterns

13

Control type

Buttons

Colour sampling

4:4:4

Built-in display

Yes

Display type

LCD

Resolution at capture speed

7680x4320@30fps

Colour depth

12 bit

Supported video modes

4320p

HDCP version

2.3

Maximum bandwidth (HDMI)

40 Gbit/s

HDMI version

2.1

Ports & interfaces

USB port type

USB Type-C

Connector type

HDMI Type-A

USB Type-C ports quantity

2

Power

Power source

USB Type-C

Power consumption

2.3 W

Input voltage

5 V

Input current

1 A

Operational conditions

Operating temperature (T-T)

-5 - 55 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 80%

Sustainability

Doesn't contain

Lead, Mercury, Cadmium

Certificates

Compliance certificates

CE, UKCA, Federal Communications Commission (FCC), RoHS, REACH

Weight & dimensions

Width

260 mm

Depth

48 mm

Height

19 mm

Weight

110 g

Packaging content

Manual

Yes

USB cable

Yes

Packaging data

Package type

Box

Package width

292 mm

Package depth

144 mm

Package height

32 mm

Package weight

300 g

Logistics data

Warranty period

3 year(s)
