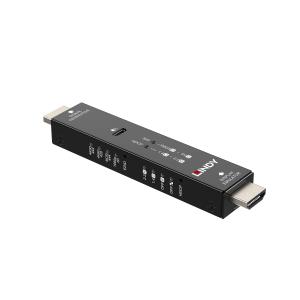

Hdmi Signal-/display-emulator Hdmi St/st 4k60 Black
£84.16
| Part Number: | 32683 |
| Language: | IN |
Product Details
Introduction
The Lindy HDMI® 18G Signal Generator & Display Emulator is an essential tool for AV installers and system integrators, to test and emulate HDMI® signals. This portable device provides 4 EDID HDMI® resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz. The selection can be done by pushing the EDID button on one side of the unit.
Connecting as display emulator, the unit can detect the HDCP content and signal status (5V, TMDS); 4 different patterns show HDCP status while LEDs help the user selecting the desired choice.
No software or additional cables is needed, it can be connected directly to a source or display via HDMI® male connectors.
The unit is felf-powered from the HDMI® source when used as display emulator, while an external USB power supply is required when it's connected as signal generator.
With a extremely compact and portable design, this device can be easily added to any AV installers testing kit, perfect for on-the-go installers in both small home setups or larger scale professional installations.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
Maximum video resolution
3840 x 2160 pixels
Bandwidth
18 Gbit/s
Design
Product colour
Black
Housing material
Metal
Ports & interfaces
Video port type
HDMI
Number of video inputs
1
Number of video outputs
1
HDCP
Yes
HDCP version
1.4/2.2
USB port
Yes
USB connector type
Micro-USB B
Power
Power consumption (max)
1.2 W
Packaging content
Cables included
USB Type-A to USB micro Type-B
Manual
Yes
Technical details
Compliance certificates
CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS
Operational conditions
Operating temperature (T-T)
-5 - 55 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
100 mm
Depth
22 mm
Height
13.6 mm
Weight
40 g
Packaging data
Package width
122 mm
Package depth
60 mm
Package height
18 mm
Package weight
75 g
