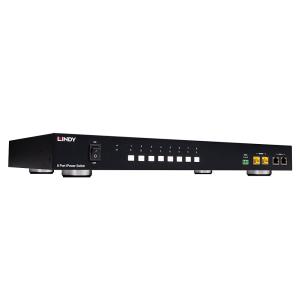

8 Port Ipower Switch

Introduction

The Lindy IPower Switch is a compact and intelligent power management solution designed for IT, AV, industrial, and office environments. It connects to a network infrastructure to provide remote control and monitoring of up to eight connected devices such as servers, workstations, hubs and routers. Users can easily perform power-on, power-off, and reboot functions either through a user-friendly web interface or external control system.

Each output can be individually configured with power-on and power-off delay settings, allowing precise sequencing after a power outage or system reset.
Supports total power of 2500W, a current range from 0 to 16A with a Voltage range from 110V to 250V.

Each outlet has its own status indication LED and button to allow the manual management function (not active by default). From the web GUI it is possible to manage the complete configuration of the unit, monitor the status of each outlet port, schedule on/off status and so on. Open APIs for Telnet, Modbus TCP, SSH, SNMP and MQTT protocols are supported, while security and network settings are provided to cover most of the requirements needed in demanding applications.

The user can also configure email notifications to receive alerts and reports directly, including warnings about overload and overcurrent thresholds, while it's possible to connect up to two external environment sensors.

Ideal for IT administrators, system integrator, and AV installers, the Lindy IPower Switch delivers reliable, flexible, and secure power control for critical applications.

Design

PDU types

Metered, Switched

Rack capacity

1U

Housing material

Metal

Product colour

Black

Ports & interfaces

AC outlets quantity

8 AC outlet(s)

Power plug

C20 coupler

AC outlet types

C13 coupler

Serial ports quantity

1

Ethernet LAN (RJ-45) ports

4

Management features

Monitoring

Voltage, Current, Power

Power

Nominal input voltage

110 - 250 V

AC input frequency

50/60 Hz

Maximum current

16 A

Maximum power

2500 W

Certificates

Compliance certificates

CE, UKCA, RoHS, REACH, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), Federal Communications Commission (FCC)

Operational conditions

Operating temperature (T-T)

-5 - 55 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

436 mm

Depth

225 mm

Height

44 mm

Weight

1.1 kg

Packaging content

Cables included

Power, Serial

Manual

Yes

Packaging data

Package weight

2.5 kg

Package width

540 mm

Package depth

422 mm

Package height

87 mm
