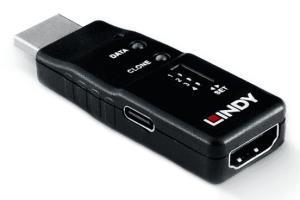

Hdmi 8k60 Edid Feeder

Introduction

The Lindy HDMI® 8K60 EDID Feeder adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters & Switches. With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new HDMI® equipment works seamlessly with no compromise on performance.

With support for resolutions up to 7680x4320@60Hz or 3840x2160@120Hz HDR (Via cloning), HDCP 2.3 pass-through, this emulator is perfect for use with any HDMI® device.

This adapter provides a fast and reliable way to clone EDID data directly from an HDMI® display, ensuring that your graphics card always receives accurate and consistent display information. By capturing the display’s EDID settings, it helps eliminate common compatibility issues such as incorrect resolutions, display drop-outs, or handshake problems making it ideal for professional AV installations, testing environments, and system integration work.

A key advantage of this unit is its eight independent EDID memory slots, allowing you to store and manage up to eight individual EDID profiles at once. Each slot can hold a different EDID configuration, giving you the flexibility to switch between multiple monitors, resolutions, and setups without needing to re-clone every time. Selection is made easily and instantly using the on-board DIP switch, providing full control and a clear, reliable workflow for multi-display environments or repeated installation tasks.

The cloning process takes less than 10 seconds, meaning you can capture, store, and deploy EDID data quickly – perfect for time-sensitive or high-volume installation work. For a full technical breakdown and operating instructions, please refer to the Technical Information section.

Features

Maximum video resolution

7680 x 4320 pixels

Video resolutions

7680 x 4320,3840 x 2160 pixels

Bandwidth

48 Gbit/s

Design

Product colour

Black

Housing material

ABS

LED indicators

Yes

Ports & interfaces

Video port type

HDMI

Number of video inputs

1

Number of video outputs

1

HDCP

Yes

HDCP pass-through

Yes

HDCP version

2.3

USB port

Yes

USB connector type

USB Type-C

Packaging content

Manual

Yes

Package type

Polybag

Technical details

Warranty period

2 year(s)

Compliance certificates

CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

64.5 mm

Depth

22.5 mm

Height

11 mm

Weight

13 g

Packaging data

Package weight

36 g
