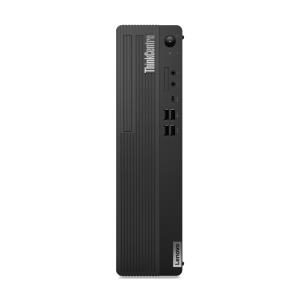

ThinkCentre M90s Gen 5 - i7 14700 - 16GB Ram - 512GB SSD - Win11 Pro - 1 Year Premier / CO2 Offset 0.5 - Qwerty UK

Introduction

Peak Processing Performance

No program is too intricate, and no file is too massive to hinder the Lenovo ThinkCentre M90s Gen 5 (Intel) small form factor (SFF) from operating at the speed of human imagination. With cutting-edge Intel vPro® Enterprise technology and Intel® Core™ processors, this desktop delivers real-world, top-notch performance for business needs.

Confidently Secured

Lenovo ThinkShield offers thorough security, combining hardware and software to protect your data. The discrete Trusted Platform Module (dTPM) chip encrypts passwords and data, while BIOS-based Smart USB Protection prevents unauthorized access through peripherals. Leveraging the Intel vPro® platform, this device enhances data and asset security.

Expandable Flexibility

The Smart Cable offers cutting-edge device collaboration through convenient USB-A and USB-C® connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices with this intelligent feature, supporting high-speed USB-C® data transfers.

Environmentally Aware

This small form factor PC was crafted with a strong emphasis on recycling. Our commitment to sustainability is evident in the integration of recycled post-consumer content (PCC) into various components. The packaging is thoughtfully designed using a combination of recycled and sustainably sourced materials.

Processor

Processor generation

Intel® Core™ i7 (14th gen)

Performance cores

8

Efficient cores

12

Performance-core Max Turbo Frequency

5.3 GHz

Efficient-core Max Turbo Frequency

4.2 GHz

Performance-core base frequency

2.1 GHz

Efficient-core base frequency

1.5 GHz

Processor socket

LGA 1700

Processor base power

65 W

Maximum turbo power

219 W

Memory bandwidth supported by processor (max)

89.6 GB/s

Processor manufacturer

Intel

Processor family

Intel® Core™ i7

Processor model

i7-14700

Processor cores

20

Processor threads

28

Processor boost frequency

5.3 GHz

Processor frequency

2.1 GHz

Processor cache

33 MB

Processor cache type

Smart Cache

Neural processor unit (NPU)

Neural processor unit (NPU)

No

Graphics

Graphics card

UHD Graphics

Discrete graphics card

No

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 770

Display

Display included

No

Memory

Internal memory

16 GB

Maximum internal memory

128 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

4x DIMM

Memory clock speed

4400 MHz

Memory channels

Dual-channel

Storage

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

DVD±RW

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Self-Encrypting Drive (SED)

Yes

Card reader integrated

Yes

Performance

Motherboard chipset

Intel Q670

Fingerprint reader

No

Trusted Platform Module (TPM)

Yes

Product type

PC

Trusted Platform Module (TPM) version

2.0

Network

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000 Mbit/s

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Antenna type

2x2

Bluetooth

Yes

Bluetooth version

5.3

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPorts quantity

2

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Yes

Line-out

Yes

Microphone in

Yes

Power

Power supply

310 W

Design

Chassis type

SFF

Volume

8.2 L

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Software

Operating system language

English

Operating system installed

Windows 11 Pro

Processor special features

Intel® Smart Cache

Yes

Audio

Audio chip

Realtek ALC897Q-CG

Audio system

High Definition Audio

Number of speakers

1

Weight & dimensions

Width

92.5 mm

Depth

297.7 mm

Height

339.5 mm

Weight

5.3 kg

Packaging content

Mouse included

Yes

Mouse connectivity

Wired

Keyboard included

Yes

Certificates

Certification

TCO,RoHS,ErP,GREENGUARD

Keyboard

Keyboard connectivity

Wired
