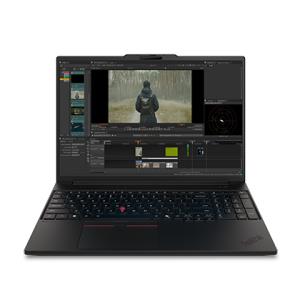

ThinkPad P16s Gen 5 - 16in - RAI9HXP-470 R890M 64G 1T W11P

Introduction

Unlock efficiency & innovation with Copilot+ PCs.Improve operational efficiency with Copilot+ PCs.- 16-inch mobile workstation for engineers, designers & professionals
- Copilot+ PC powered by AMD Ryzen™ AI PRO for responsive, on-device AI work
- Adaptable performance with scalable memory & graphics for demanding workflows

Design

Product type

Mobile workstation

Product colour

Black

Form factor

Clamshell

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display back cover material

Aluminium

Stylus pen support

No

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

Yes

HD type

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

16:10

Anti-glare screen

Yes

Display brightness

500 cd/m²

RGB colour space

sRGB

Colour gamut

100%

Maximum refresh rate

60 Hz

Eyesafe technology

Yes

Processor

Processor manufacturer

AMD

Processor family

AMD Ryzen AI 9 HX PRO

Processor model

PRO 470

Processor cores

12

Processor threads

24

Processor boost frequency

5.2 GHz

Processor frequency

2 GHz

Processor cache type

L2 & L3

L3 cache

24 MB

L2 cache

12 MB

Neural processor unit (NPU)

Copilot+ PC

Yes

Neural processor unit (NPU)

AMD Ryzen AI

NPU performance up to

55 TOPs

Memory

Internal memory

64 GB

Internal memory type

LPDDR5x-SDRAM

Memory clock speed

7500 MHz

Memory form factor

LPCAMM2

Maximum internal memory

96 GB

Memory channels

Dual-channel

Storage

Total storage capacity

1 TB

Storage media

SSD

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Self-Encrypting Drive (SED)

Yes

Optical drive type

No

Card reader integrated

Yes

Compatible memory cards

SD

Graphics

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA RTX PRO 2000 Blackwell

Discrete graphics card memory

8 GB

Discrete graphics memory type

GDDR7

On-board graphics card

Yes

On-board GPU manufacturer

AMD

Discrete graphics card

Yes

On-board graphics card family

AMD Radeon

On-board graphics card model

AMD Radeon 890M

Audio

Audio chip

Realtek ALC722-CG

Audio system

Dolby Atmos

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera resolution (numeric)

5 MP

Infrared (IR) camera

Yes

Privacy camera

Yes

Privacy type

Privacy shutter

Network

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Mobile network connection

No

Antenna type

2x2

WLAN controller model

MediaTek MT7925

WLAN controller manufacturer

MediaTek

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.4

Near Field Communication (NFC)

No

WWAN

Upgradable

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

2

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

Performance

Motherboard chipset

AMD SoC

Keyboard

Pointing device

ThinkPad UltraNav

Numeric keypad

Yes

Keyboard backlit

Yes

Keyboard language

UK English

Copilot key

Yes

Software

Operating system language

US English, ENG-UK

Microsoft Copilot

Yes

Operating system installed

Windows 11 Pro

Bundled software

Lenovo AI Now

Battery

Battery capacity

90 Wh

Power

AC adapter power

140 W

USB Type-C charging port

Yes

USB Power Delivery (USB PD)

Yes

Security

Cable lock slot

Yes

Cable lock slot type

Kensington, Nano

Fingerprint reader

Yes

Smart card reader

No

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Certificates

Certification

ENERGY STAR,TCO,TCO10,EPEAT Gold,RoHS

Weight & dimensions

Width

357.9 mm

Depth

247.9 mm

Height (front)

1.15 cm

Height (rear)

1.81 cm

Weight

1.75 kg

Packaging content

AC adapter included

Yes

Stylus pen

No
