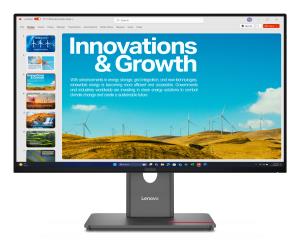

Desktop USB-C Monitor - ThinkVision P24QD-40 - 24in - 2560x1440 (QHD) - IPS

Display

Display diagonal

60.5 cm (23.8")

Touchscreen

No

Response time

6 ms

Response time measurement type

GTG (Gray to Gray)

Contrast ratio (dynamic)

3000000:1

Response time (fast)

4 ms

Viewable size, vertical

52.7 cm

Viewable size diagonal

29.6 cm

Display diagonal (metric)

60.5 cm

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)

Colour depth

8 bit

Colour gamut standard

Rec. 709, sRGB

Display resolution

2560 x 1440 pixels

HD type

Wide Quad HD

Native aspect ratio

16:9

Display technology

LED

Panel type

IPS

LED backlight

Yes

Backlight type

W-LED

Display brightness (typical)

300 cd/m²

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1500:1

Maximum refresh rate

120 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel pitch

0.2058 x 0.2058 mm

Pixel density

123 ppi

High Dynamic Range (HDR) supported

Yes

Colour gamut

99%

sRGB coverage (typical)

99%

Multimedia

Built-in speaker(s)

No

Built-in camera

No

Built-in microphone

No

Design

Front bezel colour

Black

Detachable stand

Yes

Feet colour

Black, Red

Product colour

Black

Colour name

Eclipse Black

Ports & interfaces

USB upstream port type

USB Type-B, USB Type-C

Number of USB Type-C upstream ports quantity

1

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

140 W

Headphone out

No

Built-in KVM switch

Yes

Built-in USB hub

Yes

Number of upstream ports

1

Number of USB Type-B upstream ports quantity

1

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

HDMI

Yes

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

2

DisplayPort out quantity

1

DisplayPort out version

1.4

DisplayPort version

1.4

Ergonomics

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Adjustable height (max)

15.5 cm

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-45 - 45°

Tilt angle range

-5 - 23.5°

Plug and Play

Yes

VESA mounting

Yes

Height adjustment

Yes

Pivot

Yes

Tilt adjustment

Yes

Power

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

F

Energy consumption (SDR) per 1000 hours

14.2 kWh

Energy consumption (HDR) per 1000 hours

22 kWh

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Power consumption (typical)

16 W

Power consumption (max)

5 W

Power supply type

Internal

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Bezel width (top)

2 mm

Bezel width (bottom)

1.15 cm

Width (with stand)

539.8 mm

Depth (with stand)

190 mm

Height (with stand)

505.8 mm

Weight (with stand)

5.6 kg

Width (without stand)

539.8 mm

Depth (without stand)

45.3 mm

Height (without stand)

315.8 mm

Weight (without stand)

3.6 kg

Bezel width (side)

2 mm

Packaging data

Package type

Box

Package width

730 mm

Package depth

123 mm

Package height

420 mm

Package weight

8.4 kg

Packaging content

Stand included

Yes

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Low Blue Light technology

Yes

Network

Ethernet LAN

Yes

Other features

Certification

ENERGY STAR Certified, TCO 10, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold, Volatile Organic Compound Certification, RoHS, TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution)
