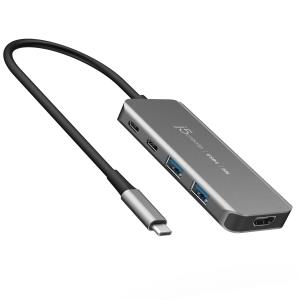

8k Multi-port Hub - 1x USB4 (male) - 2x USB-c 2x USB Type-a 1x 8k Hdmi (female) - Space Grey

8k Multi-port Hub - 1x USB4 (male) - 2x USB-c 2x USB Type-a 1x 8k Hdmi (female) - Space Grey

£74.35
£89.22
Part Number: JCH453-N
Language: NS
Real time Stock Check

Product Details

Introduction

A USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has four USB™ SuperSpeed+ 10Gbps ports (2 USB-C® and 2 Type-A) for charging, connecting peripherals and high-speed data storage devices. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

Ports & interfaces

Host interface

USB4

Hub interfaces

HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Type-C

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

Ports quantity

5

USB Type-C DisplayPort Alternate Mode

Yes

Features

Data transfer rate

10000 Mbit/s

Supported graphics resolutions

1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 7680 x 4320

Maximum resolution (HDMI)

7680 x 4320 pixels

Product colour

Grey

Housing material

Aluminium

USB Power Delivery

Yes

USB Power Delivery up to

100 W

Number of displays supported

1

Plug and Play

Yes

Power

Input voltage

20 V

Input current

5 A

Output voltage

20 V

Output current

4.75 A

Power plug type

Type C

System requirements

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Other operating systems supported

ChromeOS

Minimum system requirements

Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops. GPU and video source: DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz DisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above * Recommended Graphics GPUs : Intel® UHD graphics for 11th Gen Intel® processors or above * Notes: Mac® computers support up to 4K 60Hz on an 8K HDMI™ display

Weight & dimensions

Width

116.3 mm

Depth

45 mm

Height

11 mm

Weight

74 g

Packaging data

Quantity per pack

1 pc(s)

Package width

189.9 mm

Package depth

85 mm

Package height

17.5 mm

Package weight

138 g

Package type

Box

Packaging content

Packaging content

1 - JCH453 USB4® 8K60 Slim Hub 1 - Quick Installation Guide (QIG)

Operational conditions

Operating temperature (T-T)

-1 - 41 °C

Storage temperature (T-T)

-17 - 68 °C

Operating relative humidity (H-H)

0 - 85%

Storage relative humidity (H-H)

0 - 85%
