USB-C DOCK/HUB/Reader 10-Port AUD/DP/HDMI/RJ45/USB-C/USB-A

Introduction

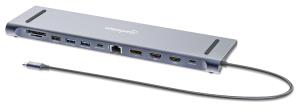

Multiport Adapter / Docking Station for Laptop and MacBook® - use three 4K monitors at once with 12 connections to your device
Elevate your device's connectivity with the Manhattan 12-in-1 Multiport Adapter. This versatile docking station fills the gaps in your laptop or MacBook®, offering essential connections such as HDMI, DisplayPort, Power Delivery, Ethernet, card reader, audio and USB ports.

Triple display connectivity in 4K without down-scaling
The two HDMI ports and the DP port let you multitask on more monitors at once. While other triple monitor docking stations often need to reduce the resolution of the third monitor to 1080p, this one will let you display in gigantic 4K across all three.

Versatile Connectivity for Your Peripherals and Wired Network
You're also able to meet most connectivity needs with three USB-A ports that connect and charge compatible devices fast, as well as a SuperSpeed USB-C data-transfer port to connect high-bandwidth devices. Address the absence of wired network connectivity in most contemporary Ultrabooks™ and MacBooks® by utilizing the Gigabit RJ45 port for reliable 10/100/1000 Mbps speeds. Thanks to two slots for SD/microSD cards, you don't need an external card reader anymore.

Powerful Charging with up to 100 W
Charge your notebook with up to 100 W through the featured USB-C PD port. Simultaneously charge other mobile devices like tablets or smartphones through the USB-A connections. The Power Delivery feature intelligently determines the power requirements of compatible devices, ensuring safe charging, faster than standard chargers.

Seamless Phone-to-Screen Experience
Connect any Android 9 and later smartphone supporting video output over USB-C DP Alt Mode. Enjoy your apps and media on a larger scale by watching videos or presenting slides directly from your phone to your monitor.

A Portable Companion for Your Travels
Encased in sturdy aluminum, this multiport adapter is designed to be your ideal travel companion. Compact enough to easily fit alongside your primary device in your computer bag or backpack, it ensures that connectivity is never compromised on the go.

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

100 W

HDMI ports quantity

2

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.4

Microphone in

No

Combo headphone/mic port

Yes

Headphone outputs

1

HDCP

Yes

HDCP version

2.3

USB Type-C DisplayPort Alternate Mode

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

Maximum memory card size

2 GB

Data transfer rate

5 Gbit/s

HD type

4K Ultra HD

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

3

Maximum refresh rate

60 Hz

Product colour

Silver

Plug and Play

Yes

Housing material

Aluminium

Power

Power source type

USB

Power connector

USB Type-C

Output voltage

5 - 20 V

Output current

5 A

USB cable length

0.5 m

Software

Windows operating systems supported

Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1

Mac operating systems supported

Yes

Mobile operating systems supported

Android

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

80 mm

Depth

284 mm

Height

17 mm

Weight

300 g

Packaging data

Quantity per pack

1 pc(s)

Package weight

400 g

Packaging content

Manual

Yes

Packaging content

USB-C PD 12-in-1 4K Docking Station / Multiport Hub Instructions

Technical details

Warranty period

3 year(s)

Compliance certificates

CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Logistics data

Products per master (outer) case

20 pc(s)

Master (outer) case width

456 mm

Master (outer) case length

620 mm

Master (outer) case height

212 mm

Master (outer) case gross weight

8.9 kg
