Desktop Charging Cabinet - 10-Port USB-C - 30W per Port

Introduction

USB-C Charging Cabinet, 30W per Port, for Schools and Hospitality without the Need for AC Adapters or Wall Chargers

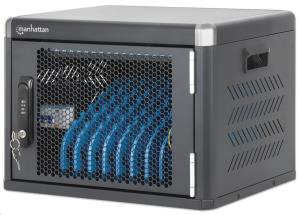

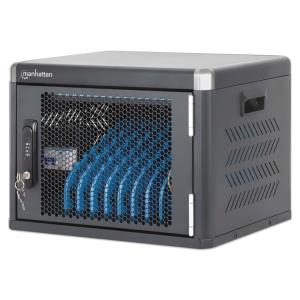

Charging, storing, and protecting portable devices is easy with this reliable Manhattan 10-Port USB-C Charging Cabinet. It’s the ideal solution for tablets, phones, Chromebooks, MacBook Air/Neo and other devices up to 14 inch in schools, restaurants, gyms, doctor’s offices, universities, hotels, offices, and more, so you can efficiently assist your students, guests, patients, customers, and patrons.

Fast, Powerful USB-C PD Charging with 30 W and Maximum Device Safety

Each of the ten USB-C Power Delivery ports delivers up to 30 watts of fast, intelligent charging - no bulky power adapters or wall chargers needed. With a total power of 320 watts, the cabinet ensures that every device receives optimal energy for quick, efficient charging. Ventilation slots dissipate heat and keep all devices cool.

Lockable with Key or Pin Code

The sturdy, durable steel housing offers a visible sign of professional device management and protection. The security lock can be opened with a four-digit combination or the two included keys.

Organized and Versatile - with USB-C Charging Cables Included

Keep your devices organized in the bay slots that offer plenty of space (330 x 25 x 235 mm each), even for bulky cases. The built-in cable-management clips on the bay dividers let you structure your charging cables for better organization and a cleaner look. A plastic pad on each shelf prevents slipping and protects your sensitive devices from scratches. The included power cable is removable for better storage. Status LEDs on each shelf provide a clear overview of charging progress for all connected devices - red indicates active charging, while green shows when devices are fully charged. USB-C charging cables (10 pcs) come included with the product so you are set with everything you need.

Design

Type

Portable device management cabinet

Placement

Table, Wall, Desk

Slot width

2.5 cm

Slot depth

33 cm

Slot height

23.5 cm

Door type

Double

Door opening

Side opening

Castor wheels

No

Handle(s)

Yes

Cord length

2 m

Product colour

Black

Housing material

Metal

Cable management

Yes

Features

Number of devices supported

10

Supported portable devices

Laptop, Tablet, Smartphone, Ultrabook

Charging source

AC

Device connectors supported

USB Type-C

Maximum screen size

35.6 cm (14")

Power protection features

Short circuit, Over voltage, Overload, Overheating

LED indicators

Yes

Locking

Yes

Lock type

Key, Combination lock

Power

AC input voltage

220 - 240 V

AC input frequency

50 - 60 Hz

Output voltage

20 V

Input current

10 A

Power per device

30 W

Over voltage protection

Yes

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-15 - 45 °C

Certificates

Compliance certificates

CE, RoHS, REACH, UKCA

Weight & dimensions

Width

463 mm

Depth

405 mm

Height

354 mm

Weight

34 kg

Packaging content

Cables included

AC, USB Type-C

Manual

Yes

Keys included

Yes

Number of keys included

4 pc(s)

Packaging data

Package width

510 mm

Package depth

460 mm

Package height

390 mm

Package weight

37 kg
