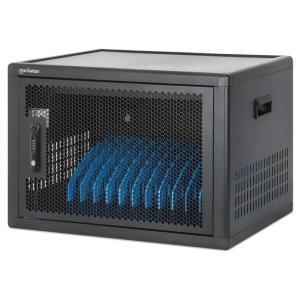

Desktop Charging Cabinet - 12-Port USB-C - 780W

Introduction

USB-C Charging Cabinet for Schools and Hospitality without the Need for AC Adapters or Wall Chargers
Charging, storing, and protecting portable devices is easy with the reliable Manhattan 12-Port USB-C Charging Cabinet. It’s the ideal solution for laptops, tablets, and other devices up to 16 inch in schools, restaurants, gyms, doctor’s offices, universities, hotels, offices, and more, so you can efficiently assist your students, guests, patients, customers, and patrons.

Fast and Powerful USB-C PD Charging with Maximum Device Safety
Each of the twelve USB-C Power Delivery ports delivers up to 65 watts of fast, intelligent charging - no bulky power adapters or wall chargers needed. With a total power output of 780 watts, the cabinet ensures that every device receives optimal power for quick, efficient charging.

Lockable with Key or Pin Code
The sturdy, durable steel housing offers a visible sign of professional device management and protection. The security lock can be opened with a four-digit combination or the two included keys.

Usable as Stationary Charging Cabinet or Mobile Charging Cart
Optional heavy-duty casters (included) let you turn the cabinet into a charging cart to roll it where you need it. Wheel locks let you quickly secure it in place.

Organized and Versatile - with USB-C Charging Cables Included
Keep your devices organized in the bay slots that offer plenty of space (395 x 32.5 x 290 mm each), even for bulky cases. The built-in cable-management clips on the bay dividers let you structure your charging cables for better organization and a cleaner look. Status LEDs provide a clear overview of charging progress for all connected devices - red indicates active charging, while green shows when devices are fully charged.12 USB-C charging cables come included with the product so you are set with everything you need.

Wall-mountable
To prevent theft or if you struggle with a small location, simply mount the cabinet to the wall via the holes on the back. All required mounting hardware is included.

Design

Type

Portable device management cabinet

Slot width

3.25 cm

Slot depth

39.5 cm

Slot height

29 cm

Door type

Single

Castor wheels

Yes

Wheel diameter

10 cm

Product colour

Black

Housing material

Metal, Steel, Plastic, Aluminium

Cable management

Yes

Features

Number of devices supported

12

Supported portable devices

Laptop, Tablet, Ultrabook

Device connectors supported

USB Type-C

Maximum screen size

40.6 cm (16")

Power protection features

Overload, Over current, Short circuit, Over voltage

LED indicators

Yes

Locking

Yes

Lock type

Key

Power

AC input voltage

220 - 240 V

AC input frequency

50 - 60 Hz

Total power

780 W

Power per device

65 W

Over voltage protection

Yes

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-15 - 45 °C

Certificates

Compliance certificates

CE, RoHS, REACH, UKCA

Weight & dimensions

Width

600 mm

Depth

440 mm

Height

410 mm

Weight

25 kg

Packaging content

Cables included

USB Type-C

Manual

Yes

Screws included

Yes

Keys included

Yes

Number of keys included

2 pc(s)

Packaging data

Package width

645 mm

Package depth

495 mm

Package height

454 mm

Package weight

28 kg
