AC Charging Cabinet 10-Bay - UK

Introduction

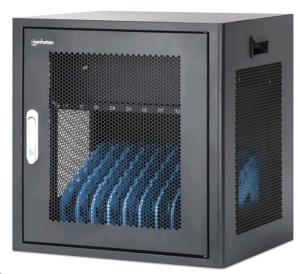

Charging, storing, and protecting portable devices is easy with the reliable Manhattan UK 10-Bay AC Charging Cabinet. It's the ideal solution for laptops and other devices up to 15.6 inch in schools, restaurants, gyms, doctor's offices, universities, hotels, offices, and more, so you can efficiently assist your students, guests, patients, customers, and patrons. Whether used on a desktop, or mounted on a wall, it delivers maximum versatility and peace of mind.

Features

• Safely stores and charges laptops, Chromebooks, tablets, iPads®, MacBooks®, phones, and other devices up to 15.6"
• Ten UK BS1363A AC outlets, arranged in two PDUs on the back with five outlets each
• 220-joule surge protection against dangerous power surges and spikes
• Spacious device slots 430 (D) x 35 (W) x 272 (H) mm each with cable management built into the dividers
• Sturdy, secure metal housing with up to 2 mm thick steel and powder coating; lockable with two included keys
• Ventilation slots for maximum airflow and cooling efficiency
• Perforated steel front door with swing handle and three-point door lock
• Openings on each side as hand grips for easier lifting and transport
• Built-in wall-mounting holes on the back to install the cabinet, save space and prevent theft, all mounting hardware included
• Stackable up to two units for more extensive charging with a greater number of ports, all mounting hardware included
• Top compartment with adapter bays organises power supplies and routes cables neatly to the device bays below
• Round edges to avoid injuries in busy environments
• Power cable with C13 to UK plug, 2 m, included
• Built-in grounding cable protects equipment from external electrical surges
• No device chargers or charging cables included (separately available from Manhattan)
• For indoor use only

Specifications

Standards and Certifications

• UKCA
• CE
• RoHS
• REACH
• IEC 60320
• IEC 60884

Electrical

• AC input: 220.0 - 240.0 V; 10.0 A; 50 - 60 Hz; IEC 60320 C14
• Operating voltage: 230.0 V
• Socket/outlet standard: British BS1363A; IEC 60884
• Maximum load: 2300.0 W
• Overload protection: 10.0 A maximum load current
• Surge protection: AC suppression with 220.0 joules

Protection Characteristics

• Short-circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) — current limit: 150% (max)

Physical

• Materials: cold-rolled, powder-coated steel, and flame retardant ABS plastic
• Perforated steel front door
• External unit dimensions (D x W x H): 510 x 526 x 525 mm
  Internal device bay dimensions (D x W x H) (10): 430 x 35 x 272 mm
• Wall-mount hole spacing: 322.8 mm (horizontal), 80 mm (vertical between pairs)
• AC power cable length: 2 m
• Cable type: H05VV-F 3G 1.5 mm²
• Net weight: 24.92 kg
• Gross weight: 28.16 kg
