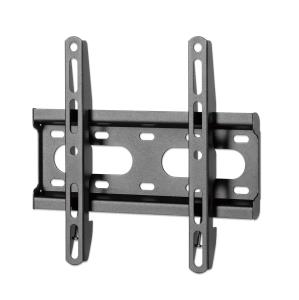

Low-Profile Fixed TV Wall Mount Holds One 23in to 43in TV up to 45kg

Introduction

Ultra Slim TV Wall Mount for flush-as-possible TV installations
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. With this mount, your TV sits only 27 mm (1 in.) from the wall. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 43"" and weighing up to 45 kg (100 lbs.). It offers VESA compliance up to 200x200, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Mounting

Minimum screen size

58.4 cm (23")

Maximum weight capacity

45 kg

Maximum screen size

109.2 cm (43")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

200 x 200 mm

Panel mounting interface

75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200

Number of displays supported

1

Mounting type

Wall

Ergonomics

Tilt adjustment

Yes

Tilt angle range

-12 - 12°

Design

Product colour

Black

Housing material

Steel

Technical details

Sustainability compliance

Yes

Compliance certificates

RoHS

Packaging content

Manual

Yes

Packaging content

Low-Profile Fixed TV Wall Mount Attachable bubble level Installation hardware with instructions

Weight & dimensions

Width

240 mm

Depth (max)

22.3 cm

Height

27 mm

Weight

600 g

Packaging data

Package width

105 mm

Package depth

257 mm

Package height

35 mm

Package weight

690 g

Package type

Box

Logistics data

Master (outer) case width

230 mm

Master (outer) case length

530 mm

Master (outer) case height

195 mm

Master (outer) case gross weight

14.8 kg

Products per master (outer) case

20 pc(s)
