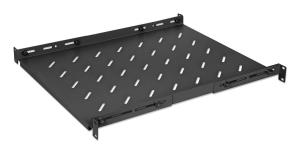

Shelf - 19in With Variable Rails For Fixed Mounting

Introduction

A fixed shelf that mounts to a rack at four points is superior to a cantilever or sliding shelf in terms of stability and load capacity, but it's usually limited to a particular installation depth. This rack mount shelf from Intellinet Network Solutions overcomes that weakness with variable rails you can adjust to depths between 550 and 750 mm (21.7 to 29.5 in.). As a flexible network accessory, it universally fits Intellinet and other third-party cabinets that are 800 mm (31.5 in.) deep.

Highlights

• Fixed shelf with extending rail depth of 550 to 750 mm for flexible installations in cabinets with 800 mm depth
• Shelf storage area depth 550 mm
• Universal fit for most cabinet and open-frame rack brands

Features

• Fixed shelf with extending rail depth of 550 to 750 mm for flexible installations in cabinets with 800 mm depth
• Shelf storage area depth 550 mm
• Universal fit for most cabinet and open-frame rack brands
• Maximum load capacity of 20 kg
• 1U installation height
• Sturdy steel sheet with antistatic powder coating
• Perforated for increased airflow to keep your equipment cool and prevent overheating
• Mounting material included
• Lifetime warranty

Specifications

General

• Form factor standard: IEC 60297, 482.6 mm (19")
• Weight capacity: 20 kg
• Color: Black RAL9004
• Rack mount space: 1U
• Suitable cabinet depth: 800 mm

Physical

• Dimensions (L x W x H): 550 - 750 x 482.6 x 44.45 mm
• Shelf depth: 550 mm
• Net weight: 2.84 kg
• Gross weight: 3.36 kg
