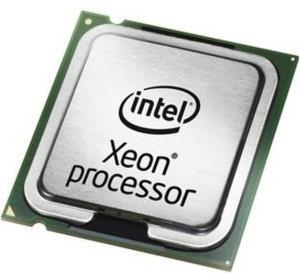

Xeon Processor E3-1275 V6 3.8 GHz 8MB Cache Oem (cm8067702870931)

Introduction

Powerful Delivery
Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.

Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications.

Reliability for Small and Medium Businesses
No matter what the size of your business, the value of your data is enormous. Keep it accessible and better protected at all times with an affordable Intel Xeon processor E3-1200 v6 product family-based server.

High Image Quality
Improve visual experiences with Intel® Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.

Processor

Processor manufacturer

Intel

Processor model

E3-1275 v6

Processor base frequency

3.8 GHz

Processor family

Intel® Xeon® E3 v6

Processor cores

4

Processor socket

LGA 1151 (Socket H4)

Component for

Server/workstation

Processor lithography

14 nm

Processor series

Intel Xeon E3-1200 v6

Processor threads

8

System bus rate

8 GT/s

Processor operating modes

64-bit

Processor boost frequency

4.2 GHz

Processor cache

8 MB

Processor cache type

Smart Cache

Thermal Design Power (TDP)

73 W

Box

N

Cooler included

N

VID Voltage Range

0.55 - 1.52 V

Stepping

B0

Bus type

DMI3

Memory bandwidth supported by processor (max)

37.5 GB/s

Processor codename

Kaby Lake

Processor ARK ID

97478

Memory

Maximum internal memory supported by processor

64 GB

Memory types supported by processor

DDR4-SDRAM,DDR3L-SDRAM

Memory clock speeds supported by processor

1866,2400 MHz

Memory channels

Dual-channel

ECC

Y

Graphics

On-board graphics card

Y

On-board graphics card model

Intel® HD Graphics P630

Maximum on-board graphics card memory

64 GB

On-board graphics card outputs supported

Embedded DisplayPort (eDP),DisplayPort,HDMI,DVI

On-board graphics card base frequency

350 MHz

On-board graphics card dynamic frequency (max)

1150 MHz

Number of displays supported (on-board graphics)

3

On-board graphics card 4K support

Y

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.4

On-board graphics card maximum resolution (DisplayPort)

4096 x 2304 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

4096 x 2304 pixels

On-board graphics card maximum resolution (HDMI)

4096 x 2160 pixels

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

On-board graphics card refresh rate at maximum resolution (HDMI)

24 Hz

On-board graphics card ID

0x191D

Features

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

Y

Market segment

Server

Maximum number of PCI Express lanes

16

PCI Express slots version

3.0

PCI Express configurations

1x16,2x8,1x8+2x4

Supported instruction sets

SSE4.1,SSE4.2,AVX 2.0

Scalability

1S

CPU configuration (max)

1

Embedded options available

Y

PCI Express CEM revision

3.0

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® Turbo Boost Technology

2.0

Intel® Quick Sync Video Technology

Y

Intel® InTru™ 3D Technology

Y

Intel® Clear Video HD Technology (Intel® CVT HD)

Y

Intel® AES New Instructions (Intel® AES-NI)

Y

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel® Memory Protection Extensions (Intel® MPX)

Y

Intel® Turbo Boost Technology 2.0 frequency

4.2 GHz

Intel® Transactional Synchronization Extensions

Y

Intel Enhanced Halt State

Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel® Secure Key

Y

Intel TSX-NI

Y

Intel® OS Guard

Y

Intel Clear Video Technology

Y

Intel Software Guard Extensions (Intel SGX)

Y

Intel 64

Y

Intel Secure Key Technology version

1.00

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel TSX-NI version

1.00

Conflict-Free processor

Y

Intel® Optane™ Memory Ready

Y

Intel® Boot Guard

Y

Intel® vPro™ Platform Eligibility

Y

Technical details

Bus bandwidth

8

Bus type units

GT/s

Launch date

Q1'17

Maximum resolution & refresh rate (DisplayPort)

4096x2304@60Hz

Maximum resolution & refresh rate (HDMI)

4096x2160@24Hz

Maximum resolution & refresh rate (Integrated Flat Panel)

4096x2304@60Hz

Maximum resolution & refresh rate (VGA)

N/A

Processor cache

8192 KB

Product type

Processor

Status

Launched

Maximum memory

64 GB

Processor brand name

Intel Xeon

Supported memory types

DDR4-SDRAM,DDR3L-SDRAM

Last change

63903513

Product family

Intel Xeon Processor E3 v6 Family

Bus speed

8 GT/s

Maximum graphics card memory

64 GB

Processor ID

0x591D

Packaging data

Package type

Retail box

Weight & dimensions

Processor package size

37.5 x 37.5 mm

Other features

Maximum internal memory

64 GB

Maximum internal memory

65536 MB

Graphics output

eDP/DP/HDMI/DVI

Video decoding

Y
