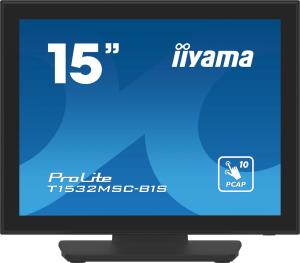

Touch Monitor - ProLite T1532MSC-B1S - 15in - 1024x768 (XGA) - Black

Introduction

The ProLite T1532MSC-B1S 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Display

Horizontal scan range

31 - 60 kHz

Display diagonal (metric)

38 cm

Display diagonal

38.1 cm (15")

Display resolution

1024 x 768 pixels

HD type

XGA

Native aspect ratio

4:3

Display technology

LCD

Panel type

TN

Touchscreen

Yes

Touchscreen technology

Projected capacitive system

Touch technology

Multi-touch

Number of simultaneous touchpoints

10

Display brightness (typical)

350 cd/m²

Response time

8 ms

Screen shape

Flat

Contrast ratio (typical)

800:1

Viewing angle, horizontal

176°

Viewing angle, vertical

176°

Pixel pitch

0.297 x 0.297 mm

Viewable size, horizontal

30.4 cm

Viewable size, vertical

22.8 cm

Digital horizontal frequency

31 - 60 kHz

Display brightness

315 cd/m²

Design

Front bezel colour

Black

Product colour

Black

Power

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

10.1 kWh

Energy efficiency class (SDR)

E

Power consumption (typical)

16 W

Power consumption (standby)

1.5 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

European Product Registry for Energy Labelling (EPREL) code

1547232

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Multimedia

Number of speakers

2

RMS rated power

2 W

Built-in speaker(s)

Yes

Built-in camera

No

Ports & interfaces

Built-in USB hub

No

USB Touch port

Yes

VGA (D-Sub) ports quantity

1

HDMI

Yes

HDMI ports quantity

1

DisplayPorts quantity

1

Headphone out

No

HDCP

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable management

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

No

Tilt adjustment

Yes

Tilt angle range

-5 - 90°

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Weight & dimensions

Width (with stand)

351 mm

Depth (with stand)

200 mm

Height (with stand)

306.5 mm

Weight (with stand)

3.7 kg

Packaging content

Cables included

Audio, DisplayPort, HDMI, Power, USB

Quick start guide

Yes

Sustainability

Sustainability certificates

ErP

Other features

Compatible operating systems

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

User controls

picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory)

Brightness

315 cd/m²

Active display area (W x H)

304.1 x 228.1 mm

Touch method

stylus, finger, glove (latex)

Weight

3.7 kg

Height

306.5 mm

Width

351 mm

Depth

200 mm

Control panel

Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power

Compliance certificates

CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE

International Protection (IP) code

IP54
