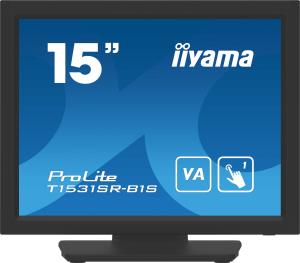

Touch Monitor - PROLITE T1531SR-B1S - 15in - 1024x768 (XGA) - Black

Introduction

The ProLite T1531SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1531SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

Features

Tilt adjustment

Yes

VESA mounting

Yes

Product colour

Black

Audio

Built-in speaker(s)

Yes

Number of speakers

2

RMS rated power

2 W

Power

Energy efficiency class (HDR)

Not available

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

11 kWh

Power consumption (typical)

16 W

Power consumption (standby)

1.5 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Display

Display brightness

280 cd/m²

Display diagonal

38.1 cm (15")

Display resolution

1024 x 768 pixels

HD type

XGA

Touchscreen

Yes

Pixel pitch

0.297 x 0.297 mm

Contrast ratio (typical)

2500:1

Response time

18 ms

Viewing angle, horizontal

176°

Viewing angle, vertical

176°

Native aspect ratio

4:3

Panel type

VA

Display diagonal

38.1 cm (15")

Display resolution

1024 x 768 pixels

HD type

XGA

Native aspect ratio

4:3

Display technology

LCD

Panel type

VA

Touchscreen

Yes

Touchscreen technology

Resistive

Touch technology

Single-touch

Number of simultaneous touchpoints

1

Display brightness (peak)

350 cd/m²

Display brightness (typical)

350 cd/m²

Response time

18 ms

Screen shape

Flat

Contrast ratio (typical)

2500:1

Viewing angle, horizontal

176°

Viewing angle, vertical

176°

Pixel pitch

0.297 x 0.297 mm

Horizontal scan range

31.5 - 60 kHz

Viewable size, horizontal

30.4 cm

Viewable size, vertical

22.8 cm

Display diagonal (metric)

38 cm

Ports & interfaces

Audio input

Yes

Built-in USB hub

No

USB Touch port

Yes

VGA (D-Sub) ports quantity

1

HDMI

Yes

HDMI ports quantity

1

DisplayPorts quantity

1

HDCP

Yes

Ergonomics

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Traditional Chinese, German, English, Spanish, French, Italian, Japanese

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable management

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

No

Tilt adjustment

Yes

Tilt angle range

-5 - 90°

Packaging content

Cables included

AC, USB, HDMI, DisplayPort, Audio

Quick start guide

Yes

Sustainability

Sustainability certificates

ErP

Other features

Compatible operating systems

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

User controls

picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, mute, factory)

Brightness

280 cd/m²

Active display area (W x H)

304 x 228 mm

Touch method

stylus, finger, glove

Weight

4.1 kg

Height

306.5 mm

Width

351 mm

Depth

200 mm

Control panel

Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power

Compliance certificates

CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE

International Protection (IP) code

IP54

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Multimedia

Number of speakers

2

RMS rated power

2 W

Built-in speaker(s)

Yes

Built-in camera

No

Design

Product colour

Black

Front bezel colour

Black

Weight & dimensions

Width (with stand)

351 mm

Depth (with stand)

200 mm

Height (with stand)

306.5 mm

Weight (with stand)

4.1 kg
