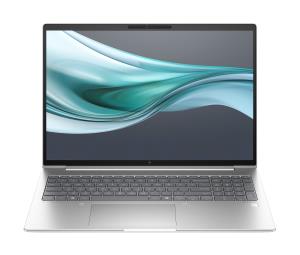

EliteBook 660 G11 - 16in - Core Ultra 5 125U - 16GB RAM - 512GB SSD - Win11 Pro - Qwerty UK

Introduction

Empowering the hybrid workforce
The right AI-enhanced PC is essential for any workforce. The secure and easy to manage HP EliteBook 660 provides a wide range of configurable features with the latest Intel® processor^[2], robust memory, and rich collaboration features that allows for easy standardization within existing IT environments.

Design

Product type

Laptop

Product colour

Silver

Form factor

Clamshell

Market positioning

Premium

Introduction year

2024

Original brand name

HP

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

No

HD type

WUXGA

Panel type

IPS

LED backlight

Yes

Anti-glare screen

Yes

Display brightness

300 cd/m²

Display diagonal (metric)

40.6 cm

RGB colour space

NTSC

Colour gamut

45%

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 5

Processor generation

Intel® Core™ Ultra (Series 1)

Processor model

125U

Processor cores

12

Processor threads

14

Processor boost frequency

4.3 GHz

Performance cores

2

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

4.3 GHz

Efficient-core Max Turbo Frequency

3.6 GHz

Low Power Efficient-core Max Turbo Frequency

2.1 GHz

Performance-core base frequency

1.3 GHz

Efficient-core base frequency

0.8 GHz

Low Power Efficient-core Base Frequency

700 MHz

Processor cache

12 MB

Processor cache type

L3

Processor base power

15 W

Maximum turbo power

57 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Windows Studio effects support

Yes

AI datatype support on NPU

FP16, FP32, Int8

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x SO-DIMM

Maximum internal memory

64 GB

ECC

No

Non-ECC

Yes

Storage

Total storage capacity

512 GB

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express

NVMe

Yes

Optical drive type

No

Graphics

Discrete graphics card model

Not available

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

No

On-board graphics card model

Intel Graphics

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera resolution (numeric)

5 MP

Infrared (IR) camera

Yes

Network

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN

Yes

Ethernet LAN data rates

10,1000,100 Mbit/s

Bluetooth

Yes

Bluetooth version

5.3

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

2

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

Keyboard

Keyboard special features

Spill-resistant

Pointing device

Clickpad

Numeric keypad

Yes

Keyboard backlit

Yes

Spill-resistant keyboard

Yes

Input device model

HP Premium Keyboard

Software

Operating system installed

Windows 11 Pro

Brand-specific features

HP speaker type

HP Dual Speakers

HP front camera

HP Webcam 5MP

HP segment

Business

HP GTIN (EAN/UPC)

198415269898

Battery

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

3

Battery capacity

56 Wh

Fast charging

Yes

Fast charging time (50%)

30 min

Power

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

Security

Fingerprint reader

Yes

Password protection

Yes

Certificates

Compliance certificates

CCC, GS mark

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR

Sustainable technologies and materials

Low halogen; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 20% post-consumer recycled plastic; Ocean-bound plastic in speaker enclosure and system fan; 50% recycled metal

Weight & dimensions

Width

359.4 mm

Depth

251 mm

Height (front)

1.7 cm

Height (rear)

1.09 cm

Weight

1.74 kg

Packaging data

Package width

69 mm

Package depth

483 mm

Package height

305 mm

Carbon footprint

Total carbon footprint (kg of CO2e)

150

Carbon emissions, manufacturing (kg of CO2e)

121

Carbon emissions, logistics (kg of CO2e)

4

Total carbon emissions, w/o use phase (kg of CO2e)

23

Technical details

General Product Safety Regulation (GPSR) URL

https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
