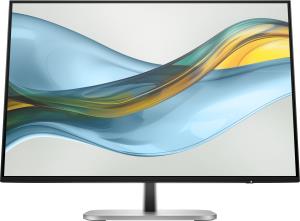

Desktop Monitor - Series 5 Pro 524pn - 24in - 1920x1200 (WUXGA) - IPS

Introduction

Reimagine what work looks like
Get more out of your workday with the HP Series 5 Pro 24” WUXGA Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.

Display

Display brightness

350 cd/m²

Display diagonal

61 cm (24")

Display resolution

1920 x 1200 pixels

HD type

WUXGA

Native aspect ratio

16:10

Display technology

LCD

Panel type

IPS

Touchscreen

No

Display brightness (typical)

350 cd/m²

Response time

5 ms

Display surface

Matt

Anti-glare screen

Yes

Screen shape

Flat

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA)

Aspect ratio

16:10

Contrast ratio (typical)

1500:1

Contrast ratio (dynamic)

10000000:1

Maximum refresh rate

100 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel pitch

0.27 x 0.27 mm

Pixel density

94 ppi

Horizontal scan range

30 - 130 kHz

Vertical scan range

50 - 100 Hz

Viewable size, horizontal

51.8 cm

Viewable size, vertical

32.4 cm

Display diagonal (metric)

61 cm

Haze rate

25%

Surface hardness

3H

Colour depth

8 bit

Colour gamut standard

sRGB

Colour gamut

100%

sRGB coverage (typical)

100%

Display resolution

1920 x 1200 pixels

Touchscreen

No

Aspect ratio

16:10

Colour gamut standard

sRGB

sRGB coverage (typical)

100%

Response time measurement type

GTG (Gray to Gray)

LED backlight

Yes

Backlight type

Edge LED

Display bezel technology

Micro-Edge

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light technology

Yes

HP segment

Business

NVIDIA G-SYNC

No

AMD FreeSync

No

Low Blue Light technology

Yes

Multimedia

Built-in speaker(s)

No

Built-in camera

No

Built-in speaker(s)

No

Design

Market positioning

Office

Product colour

Black

Feet colour

Silver, Black

Colour name

Jet black

Operational conditions

Non-operating relative humidity (non-condensing)

20 - 80%

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

20 - 80%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

20 - 80%

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity

4

HDMI

Yes

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

DisplayPort version

1.2

HDCP

Yes

HDMI

Yes

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR

Sustainable technologies and materials

Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 30% recycled metal including 90% recycled aluminum in the stand

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-45 - 45°

Tilt adjustment

Yes

Tilt angle range

-5 - 23°

On Screen Display (OSD)

Yes

Cable lock slot

Yes

Pivot angle

-90 - 90°

Power

Energy efficiency class (HDR)

C

Power consumption (typical)

22 W

Power consumption (standby)

0.5 W

Power consumption (max)

58 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency class (HDR)

C

Power consumption (typical)

22 W

Power consumption (standby)

0.5 W

Power consumption (max)

58 W

Power consumption (off)

0.3 W

Energy efficiency scale

A to G

Energy efficiency class (SDR)

C

Power consumption (off)

0.3 W

Energy efficiency scale

A to G

Weight & dimensions

Width (with stand)

532.8 mm

Depth (with stand)

189.5 mm

Height (with stand)

517.5 mm

Weight (with stand)

5.1 kg

Width (without stand)

532.8 mm

Depth (without stand)

47 mm

Height (without stand)

342.9 mm

Packaging data

Package width

621 mm

Package depth

140 mm

Package height

411 mm

Package weight

7.4 kg

Package type

Box

Package weight

7.4 kg

Warranty card

Yes

Packaging content

Cables included

AC, DisplayPort, HDMI, USB Type-A to USB Type-B

Quick start guide

Yes

Bundled software

HP Display Center; HP Display Manager

Other features

Country of origin

China, Vietnam

UNSPSC-code

43211902

Weight

5.1 kg

Compliance certificates

BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus

Certification

BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF

Weight

5.1 kg

Certification

BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF

Manufacturer warranty

HP three-year limited warranty

Brand-specific features

HP GTIN (EAN/UPC) with options

(ABB) 197961404999; (ABU) 197961405026

HP GTIN (EAN/UPC)

197961404999, 197961405026

Technical details

General Product Safety Regulation (GPSR) URL

https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

Box contents

Monitor; DisplayPort™ cable; HDMI cable; Warranty card; USB Type-B to A cable; Quick Setup Poster; AC power cord

Carbon footprint

Total carbon footprint (kg of CO2e)

190

Carbon emissions, manufacturing (kg of CO2e)

153

Carbon emissions, logistics (kg of CO2e)

3

Carbon emissions, end-of-life (kg of CO2e)

2

Total carbon emissions, w/o use phase (kg of CO2e)

34
