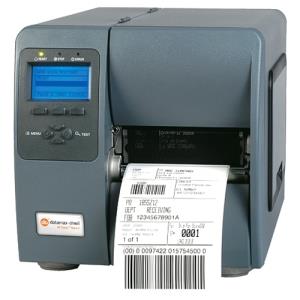

Barcode Label Printer M-4210 Dt/tt 220v Eu + British Black Power Cord 40mm Media Hub

Introduction

The M-Class is a compact, industrial-strength printer that offers outstanding value with a broad range of features. The smaller footprint is ideal when users need the power of industrial printers but must consider space limitations. The M-Class has proven to be the perfect solution for warehouse, healthcare, logistics and retail applications. The modular design of the M-Class makes maintenance and part replacement easy, and the flexible design allows for a variety of options to be upgraded in the field.

- Form factor with a small footprint for an industrial printer to fit in tight spaces where work space is a premium
- Rugged construction features a precision die-cast aluminum frame
- Real time clock for accurate date-time labeling
- Multi-language menu available in English, Spanish, German, Italian, and French
- 5-button, 128x64 LCD graphical backlit display is easy to read, enabling user-friendly label set-up and configuration
- Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer
- Versatile media compatibility supports coated side in or coated side out ribbons without reconfiguring the printer or purchasing additional options resulting in easier ribbon inventory management
- IntelliSEAQ™ printhead: proactive diagnostic tools allow easy access to printhead performance and history
- The M-Class utilizes widely used DPL and supports MCL designer and 123 Print. With the PL-Z and PL-I printer language emulations, users can easily integrate the printer to existing solutions

Printing

Print technology

Thermal transfer

Maximum resolution

203 x 203 DPI

Print speed

254 mm/sec

Maximum print height

10.8 cm

Paper handling

Autocutter

N

Maximum roll diameter

20.3 cm

Media thickness

0.0635 - 0.254 mm

Media thickness (imperial)

0.0025 - 0.01"

Core diameter

7.62 cm

Ports & interfaces

USB port

Y

USB 2.0 ports quantity

1

Parallel ports quantity

1

RS-232 ports

1

Standard interfaces

USB

Optional connectivity

Ethernet, Wireless LAN

Performance

Internal memory

64 MB

Flash memory

8 MB

Built-in barcodes

CODABAR (NW-7),EAN128,EAN13,EAN8,PDF417,UPC-E

Fixed length

Y

Number of fonts

10

Image formats supported

BMP,IMG,PCX

Security algorithms

WPA2

Design

Product colour

Black

Power

Power requirements

90-132/180-264 VAC, 47-63Hz

System requirements

Mac compatibility

N

Compatible operating systems

Windows, NT, XP, Vista

Operational conditions

Operating temperature (T-T)

4 - 35 °C

Weight & dimensions

Width

257 mm

Depth

462 mm

Height

259 mm

Weight

12.2 kg

Packaging content

Drivers included

Y

Other features

Network ready

N

LED indicators

Y
