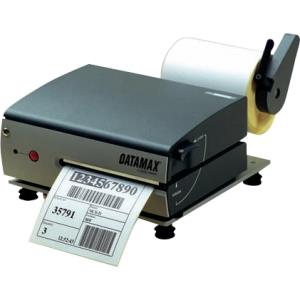

Barcode Label Printer Mp Compact4 Mobile 300 Dpi Dpl W/ Plz Emulation

Barcode Label Printer Mp Compact4 Mobile 300 Dpi Dpl W/ Plz Emulation

£1,555.57
£1,866.68
Part Number: XD2-00-07000000
Language: IN
Real time Stock Check

Product Details

Introduction

The Compact4 Mobile is designed for installation on forklift trucks and mobile stations. It can operate from a connection to a forklift’s battery and its vibrationproof design makes it the perfect choice for warehousing logistics.

- Small but Mighty: The Compact4 printers have an incredibly small footprint which allows them to be used in applications where space is limited. Their compact size takes up less than half the space of a traditional desktop label printer but with the same duty cycle and strength.
- Rugged: The Compact4 printers are constructed on a solid cast metal frame and protected with metal die cast covers. Unlike other small printers, the Compact4 series are industrial printers that are built to withstand the rigors of a warehouse or high volume printing application.
- Range: The Nova series of printers offer robust, high-performance range of thermal transfer and direct thermal printers with 3 different print widths: 4.1” [104 mm] - 6.6” [168 mm] - 8.5” [216 mm], print resolutions of 200 or 300 dpi, and print speed up to 9.8”/s [up to 250 mm/s]
- Media loading is unlike any other printer in the market. The levers are large and easy to manage -- so easy that the operation can be done single handed while wearing a leather or latex glove. The paper path is slotted through the side of the printer with no covers to open or clamshells to unlock. Loading media doesn’t get any easier.
- Software: Labelpoint is a simple yet powerful command language that controls the Compact4 and Nova printers. TeraTerm is an easy to use DOS terminal program for configuring these printers. MP Design is powerful label design software which programs label formats in the printers native command language, Labelpoint. MP Design software comes standard with Compact and Nova printers.

Printing

Print technology

Direct thermal

Maximum resolution

300 x 300 DPI

Print speed

125 mm/sec

Paper handling

Autocutter

N

Maximum roll diameter

10 cm

Media thickness

0.58 - 0.18 mm

Media thickness (imperial)

0.0023 - 0.0071"

Supported paper width

40 - 115 mm

Ports & interfaces

Connectivity technology

Wired & Wireless

USB port

Y

USB 2.0 ports quantity

1

Parallel ports quantity

1

RS-232 ports

1

Performance

Internal memory

8 MB

Flash memory

4 MB

Built-in barcodes

EAN13,PDF417

Fixed length

Y

Number of fonts

10

Design

Product colour

Grey

Power

Power requirements

24-48 VDC, 120 VA

System requirements

Mac compatibility

N

Compatible operating systems

Windows NT, XP, Vista

Operational conditions

Operating relative humidity (H-H)

20 - 85%

Operating temperature (T-T)

5 - 40 °C

Weight & dimensions

Width

230 mm

Depth

260 mm

Height

125 mm

Weight

4.5 kg

Other features

Network ready

Y
