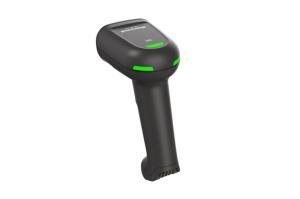

Barcode Scanner Xenon Ultra 1962g USB Kit - Include Black Gp Housing Hd Focus + USB Type A Cable + Charge And Comm Base (ccbu00g & 1962gbatcup) Row

Introduction

The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.

- The Xenon Ultra scanners are designed with green-dot LED aimers, helping users ensure accurate scans with each use.
- Warm-white illumination and print contrast down to 15% enables users to capture ultra high-density barcodes, even down to 2 mils.
- The green-dot LED aimer and white illumination aids in easier targeting and enhances scan accuracy on high-density and low-quality codes in high-throughput environments.
- With added IR capabilities, reduce annoying false activations, enabling illumination only when needed. IR even helps to reduce the gap between point-and-shoot and hands-free modes of operations.

Scanning

Type

Handheld bar code reader

Scanner type

1D/2D

Linear (1D) barcodes supported

Code 128, Code 39, PDF417, U.P.C.

2D (matrix & stacked) barcodes supported

Code 39, Data Matrix, QR Code

Optical sensor resolution (W x H)

1280 x 800 pixels

Light levels (direct sunlight)

0 - 100000 lx

Wavelength

525 nm

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

Keyboard wedge, RS-232, USB

Performance

International Protection (IP) code

IP52

Product colour

Black

Power

Power source type

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

3300 mAh

Input voltage

4.4 - 5.5 V

Weight & dimensions

Width

108.2 mm

Depth

70.4 mm

Height

160.2 mm

Weight

247 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%
