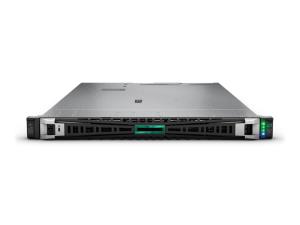

ProLiant DL360 Gen11 - 1p 4410Y - 32GB-R - MR408i-o NC 8SFF - 800W PS

Introduction

Are you looking for a scalable, compute-dense solution for high-performance workloads such as VDI, EDA, or CAD?

The HPE ProLiant DL360 Gen11 server is a rack-optimized 1U dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth with 2P compute capability. Powered by 4th Gen Intel® Xeon® Scalable processors with up to 60 cores, increased memory bandwidth, up to 8 TB of memory, and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect rack-optimized, 1U 2P, dense solution for general-purpose virtualization workloads that require increased compute density with built-in security and flexibility.

The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the Secure Intel Processor that must be matched exactly before the server will boot. The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, and VDI.

Processor

Processor boost frequency

3.9 GHz

Processor cores

12

Configurable TDP-down

4.5 W

Bus type

OPI

Configurable TDP-down

4.5 W

Bus type

OPI

Processor manufacturer

Intel

Processor family

Intel Xeon Silver

Processor model

4410Y

Processor frequency

2 GHz

Processor boost frequency

3.9 GHz

Processor cores

12

Processor cache

30 MB

Number of processors installed

1

Processor cache type

L3

Memory

Maximum internal memory

8 TB

Internal memory

32 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 32 GB

Maximum internal memory

8000 GB

Memory clock speed

4800 MHz

Storage

Number of HDDs supported

8

Supported HDD sizes

2.5"

SSD interface

PCI Express 4.0

Supported SSD sizes

2.5"

Number of SSDs supported

8

RAID support

Yes

Number of HDDs supported

8

Supported HDD sizes

2.5"

Supported SSD sizes

2.5"

Number of SSDs supported

8

RAID support

Y

Optical drive type

N

SSD interface

PCI Express 4.0

Supported RAID controllers

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

VGA (D-Sub) ports quantity

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

VGA (D-Sub) ports quantity

1

Expansion slots

2-slots (x16 FH, x16 HH) as standard. Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in a 2nd processor configuration. And maximum 2 OCP 3.0 PCIe5 slots.

Expansion slots

PCI Express x16 slots

2

PCI Express x16 slots

2

Network

Ethernet LAN

Y

Ethernet interface type

Gigabit Ethernet

LAN controller

Broadcom BCM5719

Design

Chassis type

Rack (1U)

Processor special features

CPU configuration (max)

1

Intel Smart Response Technology version

1.00

Intel Stable Image Platform Program (SIPP) version

0.00

Intel Secure Key Technology version

1.00

Intel TSX-NI version

0.00

CPU configuration (max)

1

Intel Smart Response Technology version

1.00

Intel Stable Image Platform Program (SIPP) version

0.00

Intel Secure Key Technology version

1.00

Intel TSX-NI version

0.00

Performance

Trusted Platform Module (TPM)

Yes

Management platform

Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download).

Power

Power supply

800 W

Number of main power supplies

1

Power supply type

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Weight & dimensions

Width

600 mm

Depth

990 mm

Height

241 mm

Weight

32.3 kg

Width

241 mm

Other features

Standard fans

5x Standard Fans

Dimensions (W x D x H) (imperial)

241 x 599.9 x 990.1 mm (9.49 x 23.6 x 39")

Storage drive type

None ship standard, 8 SFF supported

Security features

UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs.

Weight (imperial)

32.3 kg (71.3 lbs)

Number of processors supported

1
