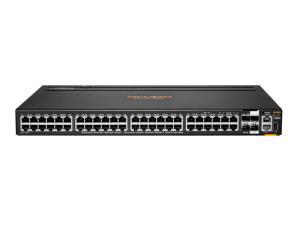

Aruba 6200M 48G 4SFP+ Switch, 48x ports 10/100/1000BASE-T Ports

Introduction

HPE Aruba Networking CX 6200 Switch Series

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the HPE Aruba Networking CX 6200 Switch Series switches provide an enterprise-class access layer solution that's simple and secure.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable HPE Aruba Networking CX 6200 Switch Series is part of the HPE Aruba Networking CX switching portfolio. By combining a modern, fully programmable OS with the HPE Aruba Networking Network Analytics Engine, the HPE Aruba Networking CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer.

A powerful HPE Aruba Networking Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow’s applications. The HPE Aruba Networking CX 6200 Switch Series is designed for simple deployment using the intuitive HPE Aruba Networking CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The HPE Aruba Networking CX 6200 Switch Series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and 740W to 1440W of PoE to power IoT devices such as security cameras and the latest wireless APs. Flexible, modular switches offer enhanced resiliency and redundancy with hot-swappable power supplies and fans.

HPE Aruba Networking Dynamic Segmentation extends the HPE Aruba Networking’s foundational wireless role-based policy capability to HPE Aruba Networking wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

4

USB Type-A ports quantity

1

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

4

USB Type-A ports quantity

1

Network

10G support

Yes

Copper ethernet cabling technology

1000BASE-T

Ethernet LAN data rates

10,100,1000 Mbit/s

10G support

Yes

Copper ethernet cabling technology

1000BASE-T

Ethernet LAN data rates

10,100,1000 Mbit/s

Data transmission

Latency (1 Gbps)

2.28 µs

Latency (10 Gbps)

1.46 µs

Switching capacity

176 Gbit/s

Throughput

130.9 Mpps

Latency (1 Gbps)

2.28 µs

Latency (10 Gbps)

1.46 µs

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Power

Power supply note

2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supports JL085A PSU

Power source

AC

AC input voltage

200 - 240 V

Input voltage

230 V

Power consumption (typical)

75 W

Power consumption note

75W at 230 VAC

Power source

AC

AC input voltage

200 - 240 V

Input voltage

230 V

Power consumption (typical)

75 W

Design

Rack mounting

Yes

Stackable

Yes

Rack mounting

Yes

Performance

Processor manufacturer

ARM

Processor model

ARM Cortex-A72

Physical stacking (units)

8

Memory type

DDR4-SDRAM

Internal memory

8000 MB

Built-in processor

Yes

Processor manufacturer

ARM

Processor model

ARM Cortex-A72

Processor frequency

1800 MHz

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Other features

Latency

1 Gbps: 2.28 µSec 10 Gbps: 1.46 µSec

Memory and processor

CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC

I/O ports

48 x 10/100/1000BASE-T ports 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port

Performance management

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Weight (imperial)

6.01 kg (13.2 lbs)

Dimensions (W x D x H) (imperial)

43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1")

Fan

Fixed fans

Management features

Switch type

Managed

Weight & dimensions

Width

43.9 mm

Depth

442.5 mm

Height

383.8 mm

Weight

6.01 kg
