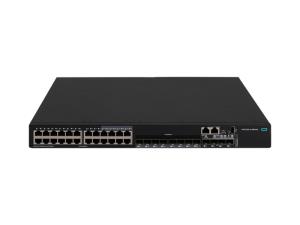

FlexNetwork 5520HI 24G 4SFP+ 24 10/100/1000BASE-T 4 10G/1G BASE-X SFP+ 1 Exp 2 PS Slot Switch

Introduction

Powerful Performance
The HPE FlexNetwork 5520 HI Switch series provides medium and large enterprise networks with increased processing power, Larger MAC size tables, and Longest Prefix Match (LPM) to improve network performance and scalability by enabling multipathing.

Highly Resilient and Scalable Access Layer Switches
The HPE FlexNetwork 5520 HI Switch series uses Intelligent Resilient Framework (IRF) that supports virtualization of up to nine physical switches into one logical device for simpler, flatter, and more agile networks.

Robust Quality of Service (QoS)
The HPE FlexNetwork 5520 HI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information, it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or the entire switch.

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Network

10G support

Yes

10G support

Y

Data transmission

Latency (1 Gbps)

5 µs

Latency (10 Gbps)

3 µs

Packet buffer memory

4 MB

Switching capacity

288 Gbit/s

Throughput

180 Mpps

Latency (1 Gbps)

5 µs

Latency (10 Gbps)

3 µs

Packet buffer memory

4 MB

Design

Rack mounting

Yes

Number of fans

2 fan(s)

Rack mounting

Y

Stackable

Y

Number of fans

2 fan(s)

Performance

Memory type

DDR4-SDRAM

Flash memory

512 MB

Physical stacking (units)

9

Memory type

SDRAM

Internal memory

2000 MB

Flash memory

512 MB

Power

Power supply included

Yes

Power consumption note

150W (maximum)

Power supply included

Y

AC input voltage

90 - 264 V

DC input voltage

36 - 72 V

Power consumption (max)

150 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Power over Ethernet (PoE)

N

Operational conditions

Heat dissipation

324 BTU/h

Heat dissipation

324 BTU/h

Weight & dimensions

Width

440 mm

Depth

360 mm

Height

43.6 mm

Width

440 mm

Depth

360 mm

Height

43.6 mm

Weight

6.7 kg

Other features

Latency

1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs

Memory and processor

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

I/O ports

(16) 10/100/1000BASE-T RJ-45 ports (8) dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports; Duplex: Ports 1-24 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot.

Performance management

IMC - Intelligent Management Center; Command-line interface; SNMP manager

Logistics data

Harmonized System (HS) code

85176990

Harmonized System (HS) code

85176990
