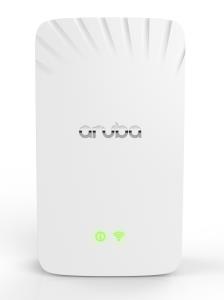

Aruba AP-505HR (EU) Dual-radio 802.11ax 2x2 Unified Remote AP Bundle
£872.55
| Part Number: | R3V56A |
| Language: | IN |
Product Details
Introduction
Bundle includes Mount Kit, Power Supply and EU Power Cord.
Certificates
Compliance certificates
Low Voltage Directive (LVD)
Certification
None
Features
MACsec support
No
Frequency band
20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate
1487 Mbit/s
Maximum data transfer rate (2.4 GHz)
287 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3bz
Bluetooth
Y
Bluetooth version
5.0
Auto MDI/MDI-X
Y
MIMO
Y
MIMO type
Multi User MIMO
Spread spectrum method
DSSS,OFDM,OFDMA
Modulation
16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK
Management features
Access point management
On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Recommended usage
Indoor
Placement
Table, Wall
Product colour
White
Performance
Compatible operating systems
HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H)
Other features
I/O ports
1 x HPE Smart Rate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications 4 x 10/100/1000BASE-T RJ-45 ports, auto-sensing link speed and MDI/MDX
Weight (imperial)
0.363 kg (0.8 lbs)
Technical details
Harmonized System (HS) code
85176990
Security
Security algorithms
WPA,WPA2,WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB 2.0 ports quantity
1
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Y
Power consumption (max)
50 W
Antenna
Antenna type
Internal
Antenna direction type
Semi-directional
Antenna features
Integrated antenna
Antennas quantity
2
Antenna gain level (max)
5.4 dBi
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Weight & dimensions
Width
86 mm
Depth
47 mm
Height
150 mm
Weight
360 g
