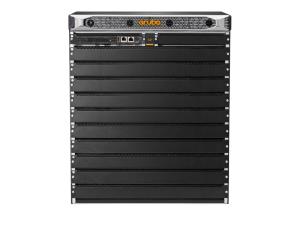

Aruba 6410 v2 Switch, 10 I/O module slots,
£26,323.44
| Part Number: | R0X27C |
| Language: | IN |
Product Details
Introduction
The Aruba CX 6400 Switch Series is a modern, flexible, and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6400 extends industry-leading monitoring and troubleshooting capabilities across the network.
Powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Switching Extension (VSX) brings high availability and enables non-disruptive fast upgrades with simplified management. Support of Aruba NetEdit and the Aruba CX Mobile App verify configurations are flawless and easy to deploy. This series offers 5 and 10 slot compact chassis with a choice of line rate interfaces including 25GbE, 100GbE, and full density 60W PoE with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.
Management features
Switch type
Managed
Switch layer
L3
Switch type
Managed
Switch layer
L3
Performance
Built-in processor
Yes
Processor frequency
1800 MHz
Memory type
DDR4-SDRAM
Internal memory
16000 MB
Flash memory
32000 MB
Network
Networking standards
IEEE 802.3af
10G support
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support
Y
Design
Product colour
Black
Compatible products
R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C
Stackable
Yes
Product colour
Black
Compatible products
R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C
Power
Power supply note
Power supply units are not included; order separately. Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters. Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
Power source
AC
AC input frequency
50/60 Hz
Power consumption note
R0X35A PSU: 1800W at 200–240 VAC, 1100W at 110–127 VAC R0X36A PSU: 3000W at 200–240 VAC, 1500W at 110–127 VAC
Power source
AC
AC input voltage
110 - 240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Other features
Manageability features
Aruba AirWave, Aruba Central Network Management, Aruba NetEdit, Aruba CX Mobile App, Command-line interface, SNMP v2c/v3, RMON
Latency
1G: 5.32 µSec 10G: 1.48 µSec 25G: 2.78 µSec 40G: 1.31 µSec 100G: 1.42 µSec
Memory and processor
CPU Management Module: Quad-core Arm Cortex™ A72 at 1.8 GHz Line Cards: Dual-core Arm Cortex™ A72 at 1.8 GHz (R0X38A-R0X45A and R0X38B-R0X40B) Line Cards: Quad-core Arm Cortex™ A72 at 1.8 GHz (R0X38C-R0X45C, S0E48A, S1T83A) Memory and flash Management Module: 16 GB DDR4 ECC memory: 32 GB eMMC Flash memory Line Cards: 4 GB DDR4 memory (R0X38A-R0X45A and R0X38B-R0X40B) Line Cards: 8 GB DDR4 memory (R0X38C-R0X45C, S0E48A, S1T83A)
I/O ports
High speed, non-blocking 1/10/25/40/50/100GbE ports 10 I/O module slots maximum depending on model
Performance management
1 x RJ-45 console port 1 x USB-C console port 1 x OOBM port 1 x USB Type-A host port HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking CX Mobile App Command-line interface SNMP v2c/v3 RMON
Weight (imperial)
53.6 kg (118.2 lbs)
Fan
Four field replaceable system fan trays
Manageability features
Aruba AirWave, Aruba Central Network Management, Aruba NetEdit, Aruba CX Mobile App, Command-line interface, SNMP v2c/v3, RMON
Weight & dimensions
Height
528.8 mm
Width
448.5 mm
Depth
442.6 mm
Height
528.8 mm
Weight
53.5 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Data transmission
Switching capacity
28000 Gbit/s
Throughput
20000 Mpps
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Total Power over Ethernet (PoE) budget
60 W
