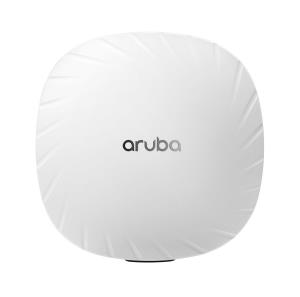

Aruba AP-535 (EG) dual-radio 4 x 4:4 802.11ax internal antennas unified campus AP

Introduction

The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.

The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.

Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.

IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.

Features

MACsec support

No

MIMO type

Multi User MIMO

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

3550 Mbit/s

Maximum data transfer rate (2.4 GHz)

1148 Mbit/s

Maximum data transfer rate (5 GHz)

2402 Mbit/s

Ethernet LAN data rates

100,1000,2500,5000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z

Auto MDI/MDI-X

Yes

MIMO

Yes

Spread spectrum method

DSSS, OFDM

Modulation

16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK

Frequency band

20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps

Management features

Access point management

On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Certificates

Certification

None

Compliance certificates

Federal Communications Commission (FCC), ISED, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Security

Security algorithms

WMM, WPA, WPA2

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

1

USB connector type

USB Type-A

Power

Power over Ethernet (PoE)

Yes

Power consumption (max)

23.3 W

Design

Placement

Ceiling, Wall

Product colour

White

Cable lock slot

Yes

Cable lock slot type

Kensington

Recommended usage

Indoor

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antenna features

Integrated antenna

Antennas quantity

4

Antenna gain level (max)

5.4 dBi

Weight & dimensions

Width

240 mm

Depth

240 mm

Height

57 mm

Weight

1.27 kg

Operational conditions

Operating relative humidity (H-H)

5 - 93%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 93%

Performance

Compatible operating systems

HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.

Other features

I/O ports

E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot

Weight (imperial)

0.998 kg (2.2 lbs)
