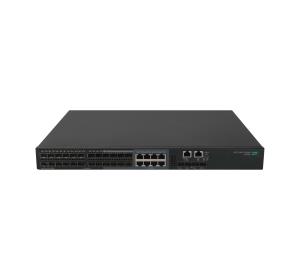

FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI Switch

Introduction

The HPE FlexNetwork 5140 EI Switch Series delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, and IPv6, and delivers energy savings with Energy Efficient Ethernet.

The HPE FlexNetwork 5140 EI Switch Series also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.

Features

Scalability and High Availability
- The HPE FlexNetwork 5140 EI Switch Series delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Fabric (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
- IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks.
- Four fixed uplinks (SFP, SFP+, and 10GBASE-T) deliver performance for bandwidth intensive applications.
- Link redundancy with support for protocols such as Spanning Tree/MSTP, RSTP, and Smart link provides high availability.

Comprehensive Security Control
- The HPE FlexNetwork 5140 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
- ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL.
- Dynamic ARP protection with functions such as ARP Detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
- Centralized security policy management and network protection with HPE Intelligent Management Center (IMC) End User Admission Domination (EAD) which integrates security policies, network access control, and access right control policies to form a cooperative security system.
- Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACAS.

Simplified Management
- The HPE FlexNetwork 5140 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
- Supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Enhanced Quality of Service
- The HPE FlexNetwork 5140 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information, it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
- Provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
- Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

24

SFP+ module slots quantity

4

Console port

RJ-45

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

24

SFP+ module slots quantity

4

Console port

RJ-45

Network

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q

10G support

Yes

Full duplex

Yes

IP routing

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Auto-sensing

Yes

VLAN support

Yes

Networking standards

IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G support

Y

Full duplex

Y

IP routing

Y

Flow control support

Y

Link aggregation

Y

Broadcast storm control

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

Auto-sensing

Y

VLAN support

Y

Data transmission

MAC address table

16384 entries

Latency (1 Gbps)

5 µs

Latency (10 Gbps)

3 µs

Jumbo frames support

Yes

Switching capacity

128 Gbit/s

Throughput

96 Mpps

MAC address table

16384 entries

Latency (1 Gbps)

5 µs

Latency (10 Gbps)

3 µs

Jumbo frames support

Y

Security

DHCP features

DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

Authentication

MAC-based authentication

Authentication type

HWTACACS, RADIUS

DHCP features

DHCP server

Access Control List (ACL)

Y

IGMP snooping

Y

Authentication

MAC-based authentication

Authentication type

HWTACACS,RADIUS

Multicast features

Multicast support

Yes

Multicast support

Y

Protocols

Routing protocols

OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

IPv4 FIB entries

512

IPv6 FIB entries

256

Routing protocols

OSPF,OSPFv2,OSPFv3,RIP,RIP-1,RIP-2

IPv4 FIB entries

512

IPv6 FIB entries

256

Design

Rack mounting

Yes

Form factor

1U

Rack mounting

Y

Stackable

Y

Form factor

1U

Performance

Memory type

SDRAM

Physical stacking (units)

9

Memory type

SDRAM

Internal memory

512 MB

Flash memory

256 MB

Power

Power supply note

At least 1 power supply is required (not included, must be ordered separately)

Power source

AC

Power supply included

No

AC input frequency

50 - 60 Hz

Power consumption (max)

57 W

DC input voltage

48 - 60 V

Power consumption note

60W (Maximum), 30W (Idle) Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Power ratings for AC power supply is indicated previously. For DC input power, idle power is 38W and maximum is 68W. DC maximum input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply.

Power source

AC

Power supply included

N

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

57 W

Operational conditions

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Heat dissipation

204 BTU/h

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget

370 W

Power over Ethernet (PoE)

N

Other features

Latency

1000 Mb latency: < 5 µs 10 Gbps latency: < 3 µs

Memory and processor

512 MB SDRAM, 256 MB flash

I/O ports

16 SFP 100/1000 Mbps ports; 8 SFP dual-personality ports—10/100/ 1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports; 4 SFP+ fixed 1000/10000 SFP+ ports; 1 RJ-45 serial console port

Performance management

HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager

Weight (imperial)

6 kg (13.2 lbs)

Dimensions (W x D x H) (imperial)

43.7 x 439.9 x 359.9 mm (1.72 x 17.3 x 14.2")

Logistics data

Harmonized System (HS) code

85176990

Harmonized System (HS) code

85176990

Weight & dimensions

Width

440 mm

Depth

360 mm

Height

43.6 mm

Weight

6 kg
