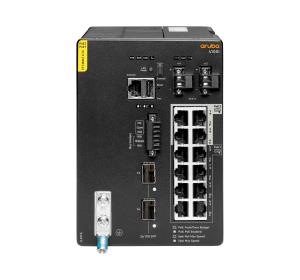

ARUBA 4100I 12G CL4/6 POE 2SFP+ DIN SW

ARUBA 4100I 12G CL4/6 POE 2SFP+ DIN SW

£5,160.83
£6,193.00
Part Number: JL817A
Language: UK
Real time Stock Check
Add auth->isAllowedToAddFavoritesProducts()): ?> Add to favorites

Product Details

Introduction

The Aruba CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.

Based on the programmable AOS-CX operating system used across the Aruba CX portfolio, this IP30 ruggedized series helps deliver a more consistent, more efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the Aruba CX 4100i also simplifies ownership with no switch software licensing requirements.

Features

Ruggedized Aruba CX Switches
- The Aruba CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
- Achieve versatile , deployment with fan less 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10GbE uplinks and up to 360W Class 4 and Class 6 PoE.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.
- Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power
- The Aruba CX 4100i Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. ,
- Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet. ,
- Built-in wire speed 1/10GbE uplinks remove bottlenecks at the access layer where devices connect.

Simplified Configuration and Management
- The Aruba CX 4100i Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use built-in web GUI, or industry standard CLI. ,
- Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. ,
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.

Smarter Segmentation
- The Aruba CX 4100i Switch Series supports Aruba Dynamic Segmentation1 that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. ,
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Reduces time-consuming and error-prone task of adds, moves and changes.

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

12

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

2

Console port

RJ-45/USB Type-C

Basic switching RJ-45 Ethernet ports quantity

12

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

2

Console port

RJ-45/USB Type-C

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x

10G support

Yes

Port mirroring

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3x

10G support

Y

Port mirroring

Y

Spanning tree protocol

Y

VLAN support

Y

Data transmission

MAC address table

8192 entries

Latency (1 Gbps)

2.39 µs

Latency (10 Gbps)

2.038 µs

Jumbo frames support

Yes

Packet buffer memory

12.38 MB

Switching capacity

64 Gbit/s

Throughput

46 Mpps

MAC address table

8192 entries

Latency (1 Gbps)

2.39 µs

Latency (10 Gbps)

2.038 µs

Jumbo frames support

Y

Packet buffer memory

12.38 MB

Security

DHCP features

DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

SSH, SSH-2

SSH/SSL support

Yes

Authentication

MAC-based authentication, Web-based authentication

Authentication type

RADIUS, TACACS+

DHCP features

DHCP client

Access Control List (ACL)

Y

IGMP snooping

Y

Security algorithms

SSH,SSH-2

SSH/SSL support

Y

Authentication

MAC-based authentication, Web-based authentication

Authentication type

RADIUS,TACACS+

Multicast features

Multicast support

Yes

Multicast support

Y

Design

Rack mounting

Yes

Form factor

4U

Product colour

Black

Rack mounting

Y

Stackable

N

Form factor

4U

Product colour

Black

Performance

Processor model

ARM Cortex-A9

Harmonized System (HS) code

85176990

Built-in processor

Y

Processor model

ARM Cortex-A9

Processor frequency

1016 MHz

Memory type

DDR3-SDRAM

Internal memory

4096 MB

Flash memory

32000 MB

Power

Power supply note

Field replaceable Industrial DIN Rail Power Supplies Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non-sharing See external PSU specification table for available PoE power

Power source

AC

Power supply included

No

Redundant power supply (RPS) support

Yes

AC input voltage

100 - 240 V

DC input voltage

12 - 48 V

Power consumption note

With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/ heater): 55W With JL820A PSU: Idle: 24W 100% Traffic Rate: 28W 100% Traffic Rate (w/ heater): 57W With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/ heater): 56W Note: Heater will only turn on at extreme low temperature condition.

Power source

AC

Power supply included

N

Redundant power supply (RPS) support

Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Total Power over Ethernet (PoE) budget

360 W

Power over Ethernet (PoE)

Y

Total Power over Ethernet (PoE) budget

360 W

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 4200 m

Non-operating altitude

0 - 4600 m

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 4200 m

Non-operating altitude

0 - 4600 m

Weight & dimensions

Width

113 mm

Depth

162.9 mm

Height

160 mm

Width

113 mm

Depth

162.9 mm

Height

160 mm

Weight

3.71 kg

Other features

Latency

1 Gbps: 2.390 µSec , 10 Gbps: 2.038 µSec Average Latency (LIFO-64-bytes packets)

Memory and processor

4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz

I/O ports

4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port 8 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port 2 x 1G/10G SFP ports 1 x USB-C console port 1 x RJ45 console 1 x USB Type-A host port 1 x Alarm socket

Performance management

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Weight (imperial)

3.71 kg (8.18 lbs)

Logistics data

Harmonized System (HS) code

85176990
