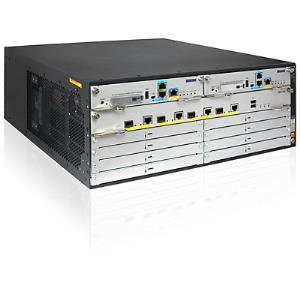

HP MSR4060 Router Chassis (JG403A)

Introduction

The HP MSR4000 Router Series is a family of high-performance, large branch routers that deliver integrated routing, switching, security, VPN, and SIP in a single box. With its integrated infrastructure and modular design, the MSR4000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.

The MSR4000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. Its distributed architecture and high reliability also strengthen the resiliency of large branches.

Security

MAC address table

1000000 entries

Security algorithms

3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1

Firewall

Y

ARP attack prevention

Y

ICMP attack prevention

Y

Access Control List (ACL)

Y

Features

Built-in processor

Yes

Processor frequency

1000 MHz

Flash memory

512 MB

Internal memory

2000 MB

Internal memory type

DDR3

Heat dissipation

347 BTU/h

Ports & interfaces

I/O ports

(8) HMIM slots, (2) MPU (main processing unit) and 1 SPU (service processing unit) slots Maximum, depending on model and configuration

Ethernet LAN (RJ-45) ports

6

Number of MPU slots

2

Other features

Memory and processor

: MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM

Performance management

IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB

Mounting

Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package

Weight (imperial)

20.6 kg (45.5 lbs)

Dimensions (W x D x H) (imperial)

439.9 x 480.1 x 175 mm (17.3 x 18.9 x 6.89")

Wireless features

Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink

Technical details

Harmonized System (HS) code

85176990

WAN connection

Ethernet WAN

Y

DSL WAN

N

SIM card slot

N

3G/4G USB modem compatibility

Y

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Forwarding rate

36 Mpps

VLAN support

Y

Multicast support

Y

Traffic control

Y

Port forwarding

Y

Auto MDI/MDI-X

Y

Mobile network

Mobile network generation

3G, 4G

4G standard

LTE

Management features

Web-based management

N

Quality of Service (QoS) support

Y

Protocols

Routing protocols

RIP-1,RIP-2

DHCP client

Y

DHCP server

Y

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

Design

Product colour

Black, Silver

Rack mounting

Y

Rack capacity

4U

Power

Power consumption (typical)

300 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

40 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

440 mm

Depth

480 mm

Height

175 mm

Weight

20.6 kg
