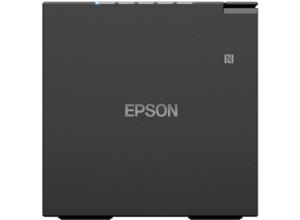

Tm-m30III (152) - Receipt Printer - Wi-Fi + Bluetooth - Black

Printing

Maximum resolution

203 x 203 DPI

Print technology

Thermal

Type

POS printer

Colour

No

Print speed

300 mm/sec

Print speed (receipt)

300 mm/sec

Printing characters

Graphic, Barcode, 2D barcode, Text

Ports & interfaces

USB port

Y

Bluetooth

Y

Connectivity technology

Wired & Wireless

Near Field Communication (NFC)

Yes

Interface

USB 2.0-A, USB Type-C, Ethernet interface (100 Base-TX / 10 Base-T), Micro SD Card Slot, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, Drawer kick-out, Wi-Fi Direct, Bluetooth, Near Field Communication (NFC)

Network

Ethernet LAN

Y

Wi-Fi

Y

Paper handling

Roll dimensions

Roll 57mm, Roll 80mm

Supported paper width

58 - 80 mm

Design

Product colour

Black

System requirements

Windows operating systems supported

Y

Mac compatibility

Y

Mobile operating systems supported

Android, iOS

Features

Built-in barcodes

Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417

Mean time between failures (MTBF)

360000 h

Cutter

Yes

Autocutter durability

2.2 million cuts

Paper save function

Yes

Tablet charge & sync

Yes

Print head life

150 km

Mounting position

Horizontal/Vertical

Wall mountable

Yes

Built-in sensors details

Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Paper Jam Sensor, Receipt near-end sensor, Receipt paper sensor

Sound pressure level (printing)

53 dB

Country of origin

Philippines

Weight & dimensions

Depth

127 mm

Width

127 mm

Height

130 mm

Weight

1.3 kg

Technical details

Font styles

ANK, Traditional Chinese, Simplified Chinese

Paper size roll paper

79.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm

Voltage

24 V

Compliance certificates

CE

Power consumption

Mean:0.1 A, Mean Receipt unit: approx.1.8 A

Box contents

AC adapter, AC cable, Main unit, Paper roll spacer, Quick Start Guide, Roll paper, Setup guide

Print speed

Max. 300 mm/sec at 203 x 203 DPI ( printing width80 mm)

Technology

Thermal Line

Other features

Buffer size

4 KB

Mean cycles between failures (MCBF)

65000000

Print head life (receipt unit)

150 km

Power

AC input voltage

100 - 230 V

AC input frequency

50 - 60 Hz

Operational conditions

Operating temperature (T-T)

5 - 45 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Packaging data

Quantity per pack

1 pc(s)

Package width

210 mm

Package depth

240 mm

Package height

210 mm

Package weight

2.34 kg

Logistics data

Products per pallet

112 pc(s)

Products per pallet layer

14 pc(s)

Products per pallet (UK)

160 pc(s)

Products per pallet layer (UK)

20 pc(s)
