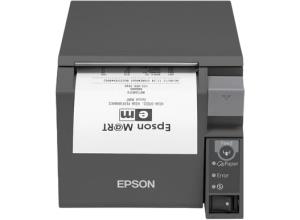

Thermal Printer Tm-t70ii (025c1) Ub-e04 Built-in USB Ps Black

Introduction

Easy-to-use
Ideal for restaurants, retailers and the hospitality industry, this POS receipt printer conveniently sits underneath your counter, as it is the same height as most cash drawers, and saves you valuable desktop space. Combined with a wide range of connectivity options (USB, Ethernet and Wi-Fi) this receipt printer offers you the flexibility to set up and operate wherever is most convenient for you. Wires and cables are also protected from accidental spillages thanks to the optional protective.

Long-lasting
This receipt printer is ideal for busy environments that demand consistent, high volume printing. It features an improved printing mechanism life of up to 17 million lines, as well as a printhead life cycle of 120km and auto cutter that can carry on working for up to 1.7 million transactions.

Save money
With the margin-less paper saving function, you can print receipts right up to the edge. Not only does this save you money, as you are able to print more receipts per roll, but combined with its ENERGY STAR rating for lower power consumption, the TM-T70II can be an effective eco-friendly addition to your business.

High quality receipt printouts
The TM-T70II is able to print receipts in different shades of grey. Advanced graphic and barcode printing capabilities allow for highly customized layouts. Logos and promotional messages can be added with ease.

Printing

Colour

No

Maximum resolution

180 x 180 DPI

Print speed

250 mm/sec

Print technology

Thermal

Type

POS printer

Features

Cutter

Yes

Autocutter durability

1.7 million cuts

Print head life

120 km

Sound pressure level (printing)

55 dB

Mean time between failures (MTBF)

360000 h

Safety

TÜV, GOST-R

Certification

CE, EN55022 Class A

Paper handling

Maximum roll diameter

8.3 cm

Supported paper width

80 mm

Ports & interfaces

USB port

Yes

USB 2.0 ports quantity

1

USB connector

USB Type-B

Serial interface

Yes

Connectivity technology

Wired & Wireless

Interface

USB 2.0, Drawer kick-out, Ethernet interface (100 Base-TX / 10 Base-T), WLAN (optional)

Network

Ethernet LAN

No

Wi-Fi

Yes

Power

Power source type

DC

Power consumption

100 mA

Design

Product colour

Black, Grey

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Weight

1.7 kg

Width

125 mm

Height

114 mm

Packaging data

Cables included

AC

Quantity per pack

1 pc(s)

Package width

190 mm

Package depth

250 mm

Package height

240 mm

Package weight

2.8 kg

Other features

Dimensions (WxDxH)

125 x 194 x 114 mm

Buffer size

4 KB

Logistics data

Products per pallet

112 pc(s)

Products per pallet (UK)

168 pc(s)

Technical details

Box contents

CD Manual, Main unit, PS-190 & AC cable, Power switch cover, Roll paper, Setup guide, Warranty Documents

Technology

Thermal Line
